Product Overview

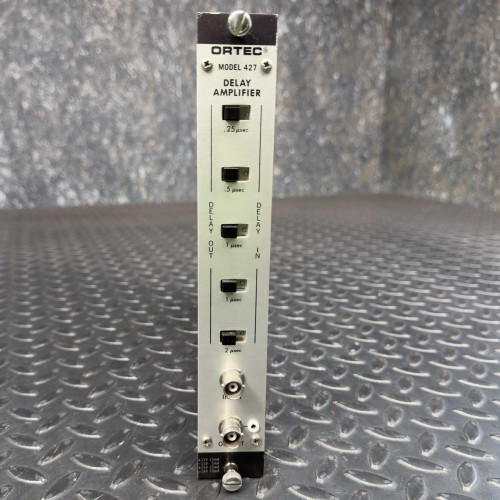

Ortec Model 427 Delay Amplifier NIM Module - Untested, Good Condition
Condition:
This vintage NIM module is used and appears in good shape visually. The unit powers on but was not fully tested. It was labeled as good when taken out of service and sent to storage.
Here's what we know about it:
- Delay range: 0 to 4.75 µs, selectable in 0.25 to 2.0 µs combinations.
- Unity gain with rise time =400 ns, DC-coupled for accurate signal transmission.
- Can handle signals of either polarity up to 10 V.
- Input impedance: >1 kO, with two output options (~1 O and 93 O).
- Excellent linearity: <±0.05% nonlinearity from 0.1 to 10 V.
- Gain shift temperature stability: <±0.01%/°C.
- Designed for applications like pulse alignment and normalizing time in signal paths.
MPN: 427
