Product Overview
Oil-Less 12V Vacuum Pump for Mobile and OEM Systems - Thomas 107CDC20-898 (Used)
Product Condition
Used. Good cosmetic condition with visible signs from normal use. Tested on 12VDC power using our external test gauge, achieving 21.5 inHg. The installed gauge reads 20 inHg. No further testing performed.
Carefully packed and shipped same business day from our Idaho warehouse. Online since 1999. Honest equipment and straightforward service.
Product Overview

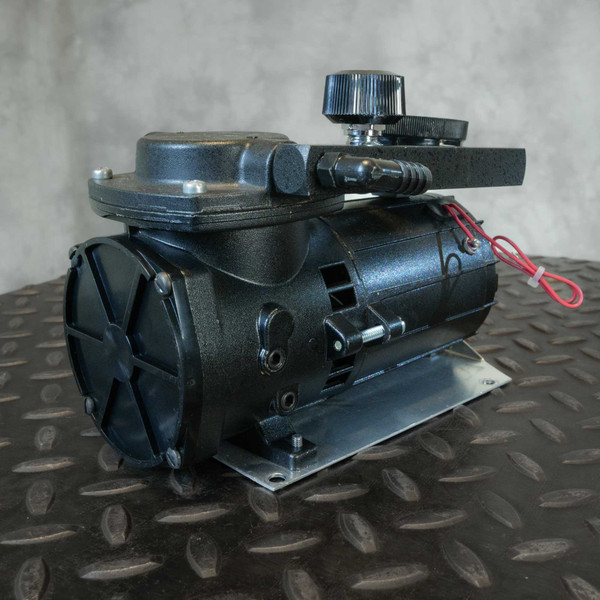

This is a Thomas 107 Series 107CDC20-898 diaphragm vacuum pump designed for 12VDC operation. The oil-less diaphragm design keeps the air path free from lubricants, making it suitable for clean vacuum applications. The 107 Series is widely integrated into portable equipment, mobile systems, and OEM assemblies where compact DC-powered performance is required. Depending on port configuration, the unit can be used to generate vacuum or light positive pressure.
Key Features
- Manufacturer: Thomas
- Series: 107
- Model: 107CDC20-898
- Power requirement: 12VDC
- Oil-less diaphragm pump construction
- Operates as vacuum pump or compressor (port dependent)
- Tested maximum vacuum: 21.5 inHg (external gauge)
- Installed gauge reading: 20 inHg
- Compact form factor for embedded or mobile systems
Applications
- Portable vacuum systems
- Battery-powered instrumentation
- OEM air sampling equipment
- Environmental monitoring devices
- Light-duty pneumatic pressure supply
- General laboratory and bench setups
Frequently Asked Questions
Has the pump been tested?
Yes. It was powered with 12VDC and tested using an external gauge, producing 21.5 inHg of vacuum.
Why does the installed gauge read lower?
The installed gauge reads 20 inHg while our external gauge measured 21.5 inHg. Variations may be due to gauge calibration or accuracy differences.
Is this an oil-lubricated pump?
No. It uses an oil-less diaphragm design, keeping the air path free of lubrication.
Can it generate pressure as well as vacuum?
Yes. With appropriate port configuration, the diaphragm mechanism can supply light positive pressure in addition to vacuum.
Compact and DC-powered, the Thomas 107 Series has long served in mobile and embedded systems. Verified under 12VDC, this unit is ready for its next integration.
