Product Overview
Dual Scale psi and bar Pressure Gauge, 2 Inch Dial, 1/4 Inch CBNPT Connection
Condition
Unused new old stock, sold each. One packed gauge was opened for photos only. The unit pictured is representative of stock. Its markings legible: dial CONN-SST 316, TUBE-SST 316, WELDED, psi, bar, USG, U.S GAUGE, MADE IN U.S.A.; case WARNING Misuse of product may cause explosion and personal injury; label AMETEK U.S. GAUGE DIVISION PMT PRODUCTS FEASTERVILLE, PENNSYLVANIA 19053, WARNING Misuse of product may cause explosion and personal injury, MODEL NO. P 1535, TRACKING CODE A45, RANGE 100 PSI&BAR, SPEC. NO. 167472, CONN. CBNPT, SIZE 2", REGISTERED ISO9001 MANUFACTURER, USG U.S. Gauge.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview

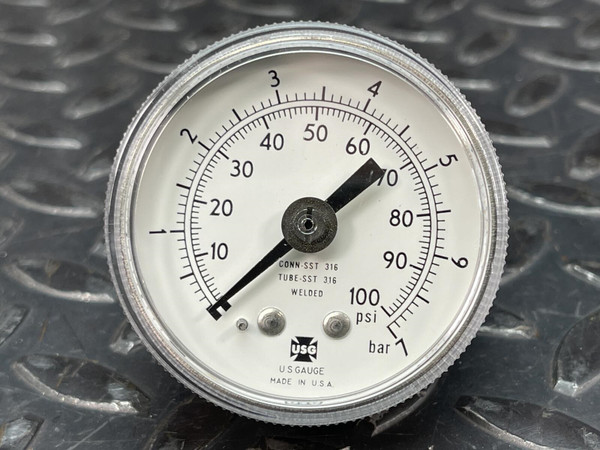

A 2 inch AMETEK U.S. Gauge pressure gauge, model P1535, with two scales on one face: psi from 0 to 100 and bar from 0 to 7. Model 1535 sits in the U.S. Gauge 1500 series of high accuracy corrosion resistant gauges. The connection and tube are SST 316 with a welded tube, and the end is a 1/4 inch CBNPT connection.
Key Features
- Range: 0-100 psi, with a 0-7 bar scale on the same dial
- Dial size: 2 inch
- Connection: 1/4 inch CBNPT
- Connection and tube: SST 316, tube welded
- Clear knurled front ring around the dial
Applications
- Reading line pressure in salt air or sour gas surroundings
- Filling the gauge port on a specialty regulator or gas cabinet panel
- Keeping a spare P1535 ready for a panel already built around this range and connection
- Logging readings for a crew that records in bar while the drawings call out psi
Frequently Asked Questions
What connection does it have?
A 1/4 inch CBNPT connection.
How big is the dial?
The face is 2 inch, behind a clear knurled ring.
Is this the dual scale version that reads bar as well as psi?
Yes. The dial carries a psi scale to 100 and a bar scale to 7, so either unit reads straight off the face. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Psi runs on the inside of this 2 inch face and bar runs around the outside. Whoever writes the reading in the log gets to pick the unit.
