Name: MGW407 Magnet Pump 5 L/M, Mitsubishi Super Line 3 Phase Induction Motor SF-JRV
Brand: Tomono
SKU: 000092323023LL23LS
Price: 416.96 USD
Availability: InStock

Product Overview

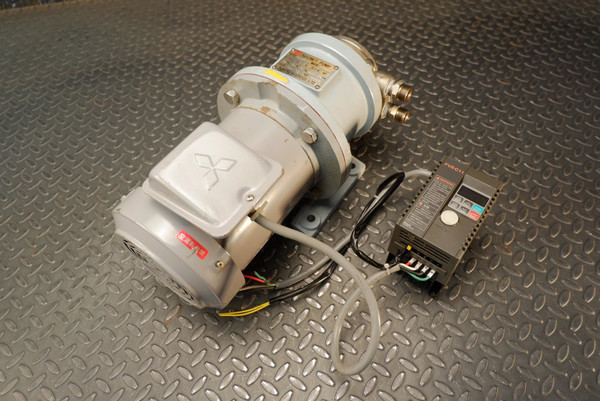

Used in good cosmetic condition with some scratches, blemishes, paint chips and scrapes from normal use and storage. We were not able to test this unit because we do not have the power output this item requires. We did verify that the motor is not frozen up and spins smoothly. With this motor is a Tomono Kogyo Co. Magnet Pump and a Fuji electric FVR-C11 Variable Frequency Drive.

Free shipping to the 48 contiguous states in the USA.

SF-JRV 80M 3 phase induction motor Specifications:

RPM: 1400 - 1690 - 1700
Output Power: 0.75KW / 1HP
Voltages: 200 - 200 – 220 v
Current: 3.7 - 3.4 - 3.3 A
Frequency: 50-60-60 Hz
Poles: 4
Frame No: 80M

MGW407 Magnet Pump Specifications:

Mate: SUS304
Output Power: 0.75KW / 1HP
RPM: 1500
Bore: 15 M/M
H: 10 M
Q: 5 L/M

FVR0.75C11S-7 Variable Frequency Drive Specifications:

Output Power: 0.75kW
Output Voltage: 200V/50Hz, 200, 220, 230V/60Hz
Output Current: 4 AInput Voltage: 200 to 240 V (Single Phase)
Input Frequency: 50/60Hz
Breaking Torque: 100%
Cooling Method: Self Cooling

Applications of 3-Phase Induction Motors:
3-phase induction motors are used in cooling applications at industrial scale. For example, they are used in alternator coolers. Pressing machines, grinding machines and drilling machines use induction motors. They are also used for blowing smoke and gases from chimneys. 3-phase induction motors and also used in printing machines and rolling mills.

Free shipping to the 48 contiguous states in the USA.

SF-JRV 80M induction motor is highly reliable in terms of both efficiency and safety. Smooth standing and high acceleration toque enable high efficiency during operation. The frame is manufactured with steel plates for high strength and the equipment is water protected according to International Protection Standard. Although the motor is compact in size, it outputs 0.75 Horsepower and operates quietly. Apart from its robust features, the safety features ensure no contact can be made with any rotating or electrified parts. Mitsubishi superline electric motors are both robust highly efficient.

MPN: MGW407
