Product Overview
Fast Ethernet to 100Base-FX Media Converters, One Multimode and One Single-Mode, ST Connectors
Condition
Both units appear unused, though they may have been used in testing. Each unit comes in its own matching carton with its own 5 VDC power adapter. The installation manual is not included. Sold as the pair. Carton labels legible: FCU-100ST, Fast Ethernet 10/100Base-TX to 100Base-FX Switching Converter (MM-2KM/ST); and FCU-100ST-S3, Fast Ethernet 10/100Base-TX to 100Base-FX Switching Converter (SM-30KM/ST).
Selling online since 1999. This one ships from our Idaho warehouse the same or next business day.
Product Overview
Antaira's FCU-100ST series bridges copper Fast Ethernet to fiber: an RJ45 port on one end of the converter and a pair of ST fiber connectors beside it. The two units in this pair are built for different fiber. The FCU-100ST is labeled for multimode fiber to 2 km, and the FCU-100ST-S3 is labeled for single-mode fiber to 30 km.
Key Features
- 10/100Base-TX copper to 100Base-FX fiber switching converter
- ST duplex fiber connectors and an RJ45 copper port on each unit
- FCU-100ST: multimode, 2 km (MM-2KM/ST)
- FCU-100ST-S3: single-mode, 30 km (SM-30KM/ST)

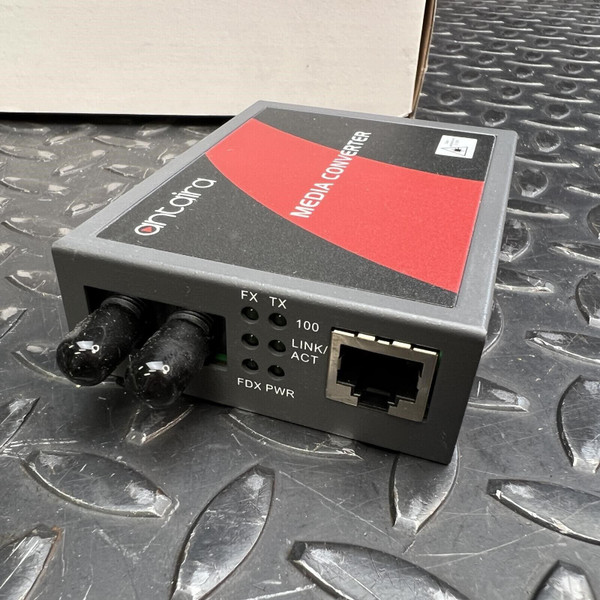

- Front LEDs: FX, TX, 100, LINK/ACT, FDX, PWR
- Rear 5VDC barrel jack and a red four-position DIP switch
- FCU-100ST-S3: IEEE 802.3 100BaseT and 802.3u 100BaseTX/FX, store-and-forward switching, auto MDI/MDIX on the copper port
- FCU-100ST-S3: DIP switch sets auto-negotiation, speed, duplex, auto MDI/MDIX and link fault pass-through; external 5 VDC, 1.6 A supply; IP30 metal case, 71 x 94 x 26 mm
Applications
- Carrying Ethernet past the 100 meter copper limit to a remote building, shed or pump house
- Linking a control cabinet to the plant network over fiber where electrical noise troubles copper
- Replacing a failed converter at one end of an existing ST fiber link of the matching type
Frequently Asked Questions
Do these two units make a link with each other?
No. One is for multimode fiber and one is for single-mode, so each pairs with a converter or switch port of its own fiber type.
How are they powered?
Each has a 5VDC barrel jack on the rear panel, and each comes with its own power adapter.
Is the installation manual included?
Not included.
Which unit do I need?
On a multimode run within 2 km, the FCU-100ST. On single-mode fiber out to 30 km, the FCU-100ST-S3. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Copper runs out of breath at about a hundred meters. Light does not. Pick the fiber you already have and send the network the long way.
