10K Type II Thermistor Duct Probe, 8 Inch, NEMA 4X Enclosure
Condition
Unused new old stock in the original manufacturer's bag. Includes hex-head mounting screws in a small bag. The unit pictured is representative of stock. Cover label legible: A/CP-D-8"-4X, Duct 8", 4X, Sensor: 10K Type II @ 77°F, Made in USA.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview

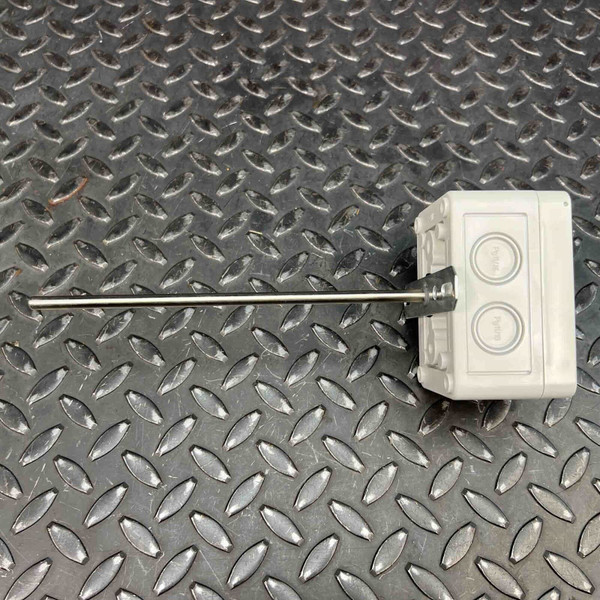

Automation Components, Inc. (ACI) built the A/CP-D-8"-4X to read air temperature from inside a duct. The 8 inch probe passes through the duct wall from a mounting flange, and the thermistor follows the 10K Type II curve, referenced at 10K ohms at 77°F. The 4X enclosure keeps the terminations sealed where moisture or washdown is a concern.
Key Features
- Thermistor: 10K Type II, referenced at 77°F (25°C)
- Resistance output
- Probe length: 8 inches
- NEMA 4X rated gray poly enclosure with a gasketed cover held by four screws
- Cable gland at the wire entry
- Mounting flange on the probe side of the enclosure
- Made in USA per the cover label
Applications
- Feeding supply or return air temperature to a building automation controller input set for 10K Type II
- Reading mixed air temperature in an air handler
- Replacing a failed duct sensor where the controller already expects a 10K Type II curve
Frequently Asked Questions
Which controllers can read it?
Any controller input configured for a 10K Type II thermistor.
Is this the 4X enclosure version?
Yes. The cover label reads Duct 8", 4X, and the cover seals on a gasket.
What does the -8"-4X part of the number mean?
The 8 is the probe length in inches and 4X is the enclosure rating. The sensing curve is the 10K Type II named on the label. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A thermistor this size spends its working life reporting one number from inside a duct nobody looks into. Set it in the airstream and let it talk.
