Product Overview
Venturi Air Valve Interface Module, 0-10 VDC Command, Per-Valve Linearization
Condition
Used, in clean condition, removed from a decommissioned system and inspected. Evaluation: Visual inspection only. Function testing not performed. Labels legible on the end panel: UVM1000, 02192179-031, Class 2 Power Supply Only. The internal transformer is marked 281077-N, Class 2 Power Supply Only. The unit pictured is representative of stock.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
Johnson Controls' UVM1000 Universal Valve Module lets a Venturi air valve take orders from a third-party controller. Each valve is characterized at the factory, and the module holds a linearization curve for its valve that is reached through a 0 to 10 VDC command signal. It can also span, scale and linearize the valve's feedback sensor, and it supports UVM summing, an optional wiring scheme for linking modules.
Key Features
- 0 to 10 VDC command signal input
- Linearization curve stored in the module for its associated valve, matching its position to airflow in cubic feet per minute (CFM)
- Span, scale and linearization of the valve feedback sensor
- UVM summing wiring option
- Class 2 power, internal transformer with leads tagged 24V
- Circuit board with green pluggable terminal blocks
- End panels carry a fuse holder, a DB9 connector and grommeted wire entries
- Bright metal enclosure with a thumbscrew cover
Applications
- Running laboratory Venturi air valves from a building controller that is not a Johnson Controls system
- Replacing a failed UVM1000 on an existing Venturi valve
- Keeping a spare module on hand for a lab exhaust or supply system
Frequently Asked Questions
Does it need a Johnson Controls controller?
No. It is built to let third-party controllers command Venturi valves through a 0 to 10 VDC signal.
Is a configuration cable or software included?
Not included.
What exactly am I getting?

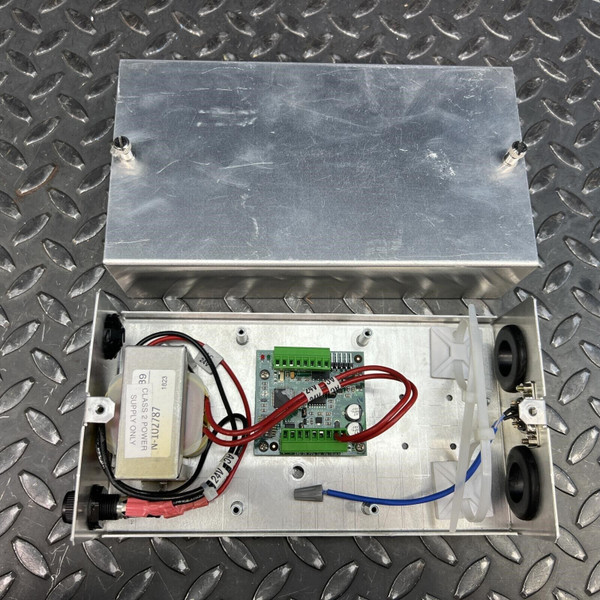

A used UVM1000 removed from a decommissioned system, clean inside and out: the enclosure, cover, circuit board, transformer, fuse holder and wiring as photographed. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A Venturi valve is mostly a cone and a spring until something tells it what the room needs. This box does the telling; hand it a 0 to 10 volt signal.
