Product Overview
Right-Angle Gearmotor, 500 Ncm Maximum, for Three-Phase or Single-Phase 230V
Condition

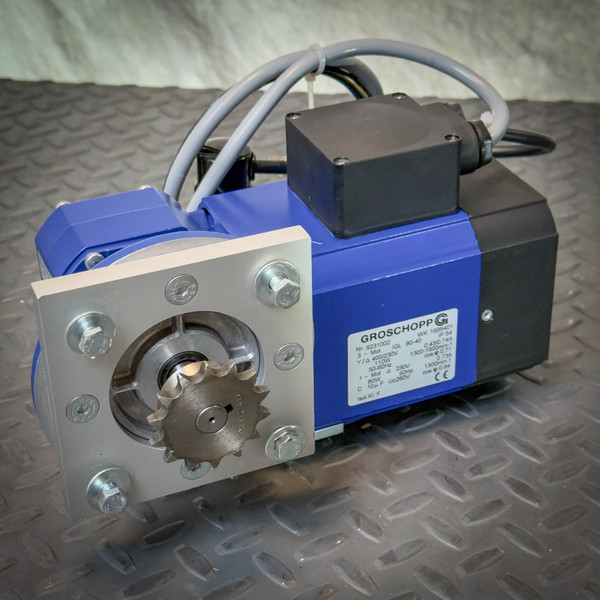

Used, in good condition, tested and functional, with normal signs of handling consistent with industrial use. Sold as one gearmotor, with the output sprocket, mounting plates and cables shown. Markings legible: GROSCHOPP, Nr. 9231002, WK 1695401, 3 ~ Mot IGL 80-40, IP 54, Y/Δ 400/230V 0,43/0,74A, 110W 1300-1600min-1, 50-60Hz cos φ 0,71, 1 ~ Mot Δ 230V 0,73A, 80W 50Hz 1300min-1, C 10µF Uc260V cos φ 0,94, Isol.Kl. F, CE on the motor; Typ VE 31-G-R-5, Md max 500 Ncm, i 75 on the gearbox; LAPP KABEL STUTTGART ÖLFLEX on the cable.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
An angled gearmotor turns its output through a right angle, so the motor runs alongside the machine instead of standing out from it. Here a Groschopp IGL 80-40 motor drives a VE 31-G-R-5 gearbox with an i 75 ratio.
Key Features
- Three-phase rating: Y/Δ 400/230V, 0,43/0,74A, 110W, 1300-1600min-1, 50-60Hz
- Single-phase rating: Δ 230V, 0,73A, 80W, 50Hz, 1300min-1, with C 10µF Uc260V
- VE 31-G-R-5 gearbox, Md max 500 Ncm, i 75
- IP 54, insulation class F, CE
- Sprocket on the output shaft, square plate on the output flange
Applications
- Replacing a WK 1695401 gearmotor on an existing machine drive
- Turning a slow chain sprocket in a test rig or pilot line
- Running a sprocket drive from a 230V single-phase supply in a shop without three-phase power
Frequently Asked Questions
Will it run on single-phase power?
Yes. Single-phase, it is rated Δ 230V, 0,73A, 80W, 50Hz, 1300min-1, and it calls for a 10µF capacitor rated Uc260V.
What is the output torque?
500 Ncm maximum, through the i 75 gearbox.
Is it sold as tested?
Yes. It is used, in good condition, tested and functional, with normal signs of handling consistent with industrial use. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Seventy-five turns of the motor for every turn of the sprocket, with 500 Ncm waiting at the end of it. Somebody has a slow shaft that wants exactly that.
