1 1/2" Conduit Body 4-Pack, O-Z Gedney LL57 Type LL Form 7, Unused

EGS O-Z/Gedney

$68.99
SKU:
000121424005UU24LS
Condition:
New
Brand:
Crouse-Hinds
Adding to cart… The item has been added

Product Overview

Type LL Form 7 Gray Iron Conduit Outlet Bodies, 1 1/2 Inch Threaded Hubs

Condition

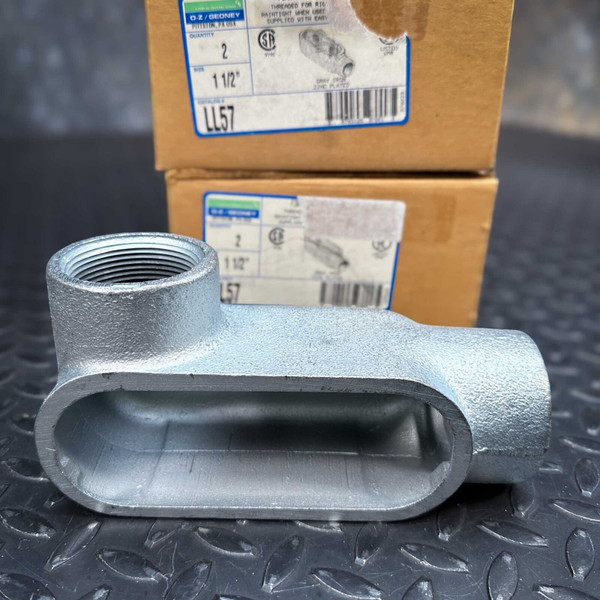

Unused new old stock: four O-Z Gedney LL57 conduit bodies in two original cartons, two per carton. The cartons show storage wear and a torn label corner. Carton label markings legible: O-Z/Gedney, Pittston, PA USA, Quantity 2, Size 1 1/2", Catalog # LL57, Gray Iron, Zinc Plated, Form 7, with CSA and UL marks. Casting marking legible on the photographed body: 27 CU IN. Covers and gaskets are not included.

Ships same or next business day from our Idaho warehouse. Selling online since 1999.

Product Overview

Built for 1 1/2 inch threaded conduit, the LL57 is the Type LL outlet body in O-Z Gedney's Form 7 line. The LL pattern puts the access opening on the left side, so a run turns 90 degrees along a wall while the conductors stay reachable for pulling and splicing. Four bodies cover four corners of the same run.

Key Features

  • Type LL pattern: access opening on the left side of the body
  • 1 1/2 inch hub size, threaded hubs at 90 degrees
  • Form 7 series
  • Gray iron, zinc plated, per the carton label
  • 27 cubic inch capacity, cast into the body
  • CSA and UL marks on the carton label

Applications

  • Turning an exposed 1 1/2 inch run around a corner on a wall or column
  • Adding a pull point on a long run so conductors are not fed through every bend at once
  • Giving splice access at a corner in industrial and commercial wiring

Frequently Asked Questions

What conduit does it fit?

1 1/2 inch threaded rigid conduit, one run into each hub.

Is this an LL or an LR body?

LL. The carton reads LL57 and the opening sits on the left side. An LR has its opening on the right.

Are covers included?

Not included.

How much room is inside for splices?

The body is cast with 27 CU IN, its volume in cubic inches, which is the figure used when sizing conductor fill. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Electricians have called this shape an LL for generations, and the letters are most of the spec: L for the turn, L for the opening on the left. Size, shape and series all fit in four characters on the carton, so read LL57 off the old body and the match is done.
