Form 7 Tee Body for 1-1/2 Inch Rigid and IMC Conduit, with a Pulling Opening
Condition
Unused new old stock, in OEM packaging; the manufacturer's box is a bit beat up, but the NOS body inside is fine. Sold as one conduit body. Markings legible: FM 7, APPLETON, 1 1/2, T57, UL and CSA marks, and 3 NO. 2 MAX and 28 CU.IN. cast inside; the carton label reads 1-1/2" GRAYLOY FM7 CONDUIT BODY, FM7 CONDUIT BODIES TYPE T, UL LISTED, with a CSA mark.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview

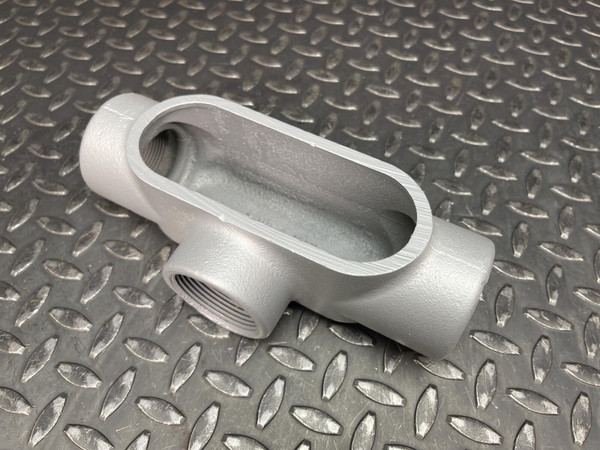

A tee body gives one 1-1/2 inch conduit run a branch and a place to pull and splice where the three meet. Appleton made this Grayloy iron T57 in its Form 7 line, with tapered female threaded hubs for rigid steel, rigid aluminum and IMC conduit.
Key Features
- Type T: two in-line hubs and one branch hub
- 1-1/2 inch tapered female threaded hubs
- Rigid steel, rigid aluminum and IMC conduit
- 28 CU.IN. cast inside the opening
- 3 NO. 2 MAX cast inside the opening
- Grayloy iron, Form 7 (FM7) series
- UL listed under UL 514A and 514B, CSA certified
- Interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Body length 8.19 inches
Applications
- Teeing a branch off a 1-1/2 inch rigid run in a plant or shop
- Giving an electrician a pull and splice point where three conduits meet
- Replacing a cracked or rusted Form 7 tee in an existing run
Frequently Asked Questions
What wire fill is cast into it?
3 NO. 2 MAX and 28 CU.IN. are cast inside the opening.
Is this a Type T body and not a TB?
Yes. It is a Type T, with two in-line hubs and one branch hub, and T57 is cast on the side wall beside the 1 1/2 size. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The carton took the knocks, and the body inside came through fine. Read 3 NO. 2 MAX in the opening, count your conductors, and pull.
