Amphenol RFX 31-315-RFX BNC Crimp Plug for RG-174/188/316, 6-Pack, Unused

Amphenol

$18.99
SKU:
000102525013PP25storemulti
Bulk Pricing:
Buy in bulk and save
Adding to cart… The item has been added

Product Overview

50 Ohm Straight BNC Crimp Plugs for RG-174, RG-188 and RG-316 Coax

Condition

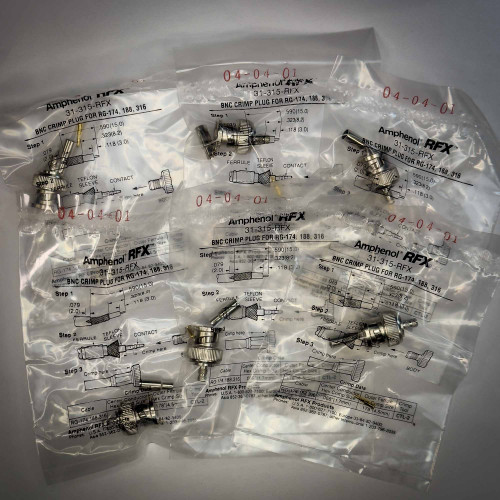

Unused new old stock, kept in original packaging. Sold as a set of six BNC crimp plugs for one price. Markings legible: Amphenol® RFX™, 31-315-RFX, BNC CRIMP PLUG FOR RG-174, 188, 316, Amphenol RFX Products, strip dimensions, crimp data and crimp tool CTL-2. The set pictured is representative of stock.

Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.

Product Overview

Small-diameter coax such as RG-174 and RG-316 needs a BNC plug sized for its thin jacket, or the ferrule never grips. Amphenol RFX is the Amphenol RF line of coax connectors, and 31-315-RFX is its straight BNC crimp plug for these three cables. Each plug is a crimp body, a ferrule, a center contact and a Teflon sleeve.

Key Features

  • BNC straight male plug, crimp termination, 50 ohm, bayonet coupling
  • For RG-174, RG-188 and RG-316 cable
  • Nickel-plated brass body and gold-plated brass center contact
  • Cable strip lengths .590 in (15.0 mm), .323 in (8.2 mm) and .118 in (3.0 mm), with .079 in (2.0 mm) on the braid
  • Center conductor hex crimp .068 in (1.7 mm); outer ferrule hex crimp .178 in (4.5 mm)

Applications

  • Building short RG-316 jumpers for test instruments on a lab bench
  • Terminating RG-174 leads for a radio or sensor project
  • Replacing a damaged BNC end on an existing RG-188 cable
  • Stocking a repair bench that works on small coax every week

Frequently Asked Questions

What is the impedance?

50 ohm.

Which crimp tool and die sizes does it take?

CTL-2. The center conductor crimps at a .068 in (1.7 mm) hex and the outer ferrule at a .178 in (4.5 mm) hex.

Will it take RG-316 cable?

Yes. The 31-315-RFX is a BNC crimp plug for RG-174, RG-188 and RG-316. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Three cables, two hex sizes, one plug number. The strip lengths of .590, .323 and .118 inch are the numbers a builder gets wrong first.
