Product Overview
RFS HOIST1-158L Lace-Up Cable Hoisting Grip - 1-5/8" Coax and Elliptical Waveguide, Stainless Mesh, Lot of 2
Condition

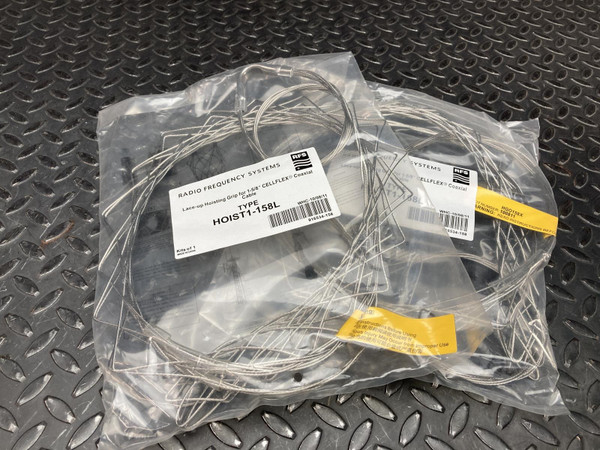

Lot of 2 grips, both factory-sealed in original poly bag packaging - unopened with no tears. Photo-confirmed: labels read "TYPE HOIST1-158L" and "CELLFLEX Coaxial"; date code WHC-10/08/11; barcode 916534-158 visible. Each bag contains the stainless wire mesh grip and a multilingual illustrated instruction sheet. Unused NOS.
Carefully packed and shipped same business day from our Idaho warehouse. Online since 1999. Honest equipment and straightforward service.
Backed by our guarantee.
Product Overview
Radio Frequency Systems HOIST1-158L is a lace-up (L-Type, open) hoisting grip designed for lifting 1-5/8" coaxial cables and compatible elliptical waveguides during antenna transmission line installations. Stainless steel wire mesh construction distributes hoisting load evenly along the cable jacket, protecting the transmission line from point-load damage during tower climbs. The L-Type designation means this grip is configured for use when the top connector is already installed before hoisting begins - if connector installation follows hoisting, the C-Type (closed) version is required instead. Compatible cable types include RFS LCF158 and HCA158 coaxial cables, and RFS E58, E60, and E65 elliptical waveguides.
Key Features
- L-Type (Lace-Up / Open): for installations where the top connector is pre-installed before hoisting
- Cable diameter: 1-5/8" coaxial
- Compatible coaxial cables: RFS LCF158, HCA158, CELLFLEX 1-5/8"
- Compatible elliptical waveguides: RFS E58, E60, E65
- Maximum lift - coaxial: up to 60 meters (LCF158, HCA158)
- Maximum lift - waveguide: up to 100 meters (E60, E65)
- Construction: stainless steel wire mesh
- Single hoisting eye attachment point
- Factory-sealed; photo-confirmed packaging intact
Applications
- Antenna transmission line installation on communication towers and rooftop structures
- Hoisting 1-5/8" CELLFLEX coaxial runs for wireless telecom and cellular infrastructure
- Tower work with elliptical waveguide for TV and radio broadcast antenna feeds
- HF defense and military communication antenna system installation
- Mobile radio and land mobile radio (LMR) antenna cable pulls
Frequently Asked Questions
Is this the right grip for my installation - L-Type or C-Type?
The HOIST1-158L is an L-Type (lace-up, open) grip. Use it when your top connector is installed before hoisting. If you plan to install the connector after the cable is in position, you need the C-Type (closed) version - a different part number.
What cables and waveguides does this fit?
Confirmed compatible: RFS LCF158 coaxial, RFS HCA158 coaxial, CELLFLEX 1-5/8" coaxial cable, and RFS E58, E60, and E65 elliptical waveguides. It is sized specifically for 1-5/8" diameter - it will not work correctly on larger or smaller cable outside that diameter range.
What is the maximum cable length I can hoist with this grip?
Up to 60 meters for LCF158 and HCA158 coaxial cable runs. Up to 100 meters for E60 and E65 elliptical waveguide runs. Do not exceed these lengths per grip.
What is included in this listing?
Two HOIST1-158L grips, each factory-sealed in original poly packaging. No additional hoisting hardware is included.
Are these new or previously used?
Unused NOS. Both units are factory-sealed in original poly bags, photo-confirmed intact with no tears or signs of opening. Date code visible on packaging: WHC-10/08/11.
Antenna work doesn't slow down for missing consumables - and a grip failure mid-hoist is not a story anyone wants to tell. These are sealed, correct for the job, and ready to go up the tower with you.
