Product Overview

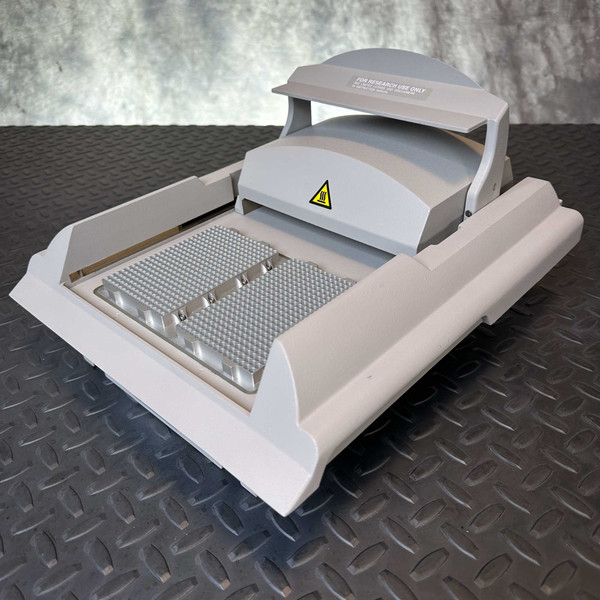

Used Applied Biosystems GeneAmp PCR 9700 Dual 384-Well Interchangeable Block
The Applied Biosystems GeneAmp PCR System 9700 Dual 384-Well Interchangeable Block (Part No. N8050400R) is a high-throughput module built for rapid and reliable amplification of large sample volumes. Each of its two precision aluminum blocks supports a 384-well plate in a 0.02 mL format, allowing up to 768 samples per run with consistent temperature uniformity across all wells.
Developed during Applied Biosystems’ peak years of PCR innovation, this module embodies the brand’s commitment to precision engineering and scalable research performance. Its dual-block configuration enables simultaneous or sequential PCR protocols, improving throughput without compromising reproducibility—an essential feature in genomic, sequencing, and screening labs.
Product Condition
Used, clean, and in very good condition. Minor handling marks consistent with professional laboratory use. Fully functional and tested for integration with the GeneAmp 9700 base unit.
Product Overview
The N8050400R Dual 384-Well Module offers high-speed heat transfer and tight temperature control for efficient PCR cycles. Its interchangeable design lets researchers switch easily between block formats, adapting the same 9700 platform to different assay types and throughput demands. This combination of performance and adaptability makes it a preferred tool for research cores and molecular diagnostics environments.
Key Features
- Part Number: N8050400R
- Model Compatibility: GeneAmp PCR System 9700
- Configuration: Dual independent aluminum blocks
- Plate Capacity: 2 × 384-well plates (0.02 mL format)
- Total Sample Capacity: 768 samples per run
- Temperature Uniformity: ±0.4°C across the block surface
- Fast thermal ramp rates for efficient cycling
- Interchangeable design compatible with other 9700 block modules
- Material: Precision-machined aluminum for even thermal transfer
- Manufacturer: Applied Biosystems (PerkinElmer)
Applications
- High-throughput PCR and sequencing workflows
- Genotyping, mutation detection, and SNP analysis
- Cycle sequencing and template amplification
- Large-scale genetic screening and validation
- Core lab and production research environments
- Assay optimization and development
Frequently Asked Questions
Is this module compatible with the GeneAmp 9700 thermocycler?
Yes. The N8050400R Dual 384-Well Module is designed specifically for the Applied Biosystems GeneAmp PCR System 9700 platform.
Can both 384-well blocks operate independently?
Yes. Each block can run a separate PCR program, allowing simultaneous amplification with different thermal profiles.
What reaction volume does each well support?
Each position supports 0.02 mL reaction volumes, ideal for high-throughput workflows with minimal reagent consumption.
Can this module be swapped with other block types?
Yes. The interchangeable block design allows quick replacement with 96-well or other compatible GeneAmp 9700 modules.
What environments benefit most from the dual-block design?
High-throughput genomics facilities, sequencing centers, and diagnostic labs that require reproducible, high-capacity amplification runs.
Precision-engineered for throughput and reliability, the N8050400R Dual 384-Well Block extends the GeneAmp legacy—its next run begins with you.
