Product Overview

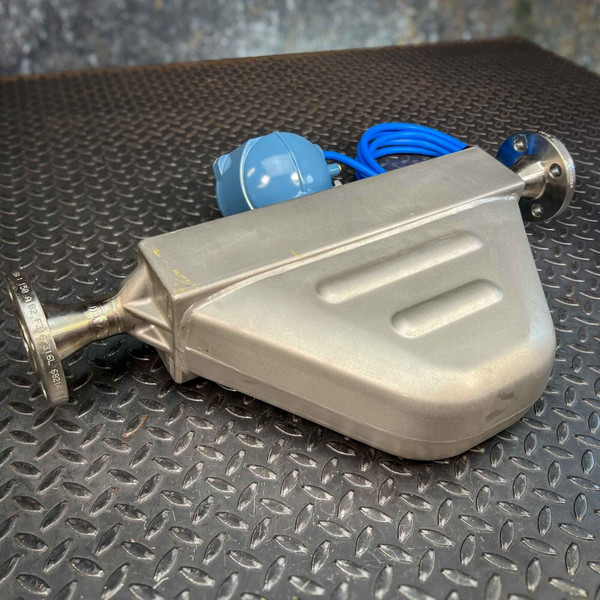

Micro Motion R-Series R100S128N2BAEZYZZ Coriolis Mass Flow Sensor with Model 800 Enhanced Core Processor
Condition
Used, and it appears to be in good and clean condition. Visual inspection only; function testing not performed. No visible damage; it was stored for future use, and the operational history is unknown. Sensor nameplate legible: Micro Motion Mass Flow Sensor, Model R100S128N2BAEZYZZ, Sensor S/N 21021261, 2020, CSA Dual Seal, Enclosure Type 4X, Made in Mexico. Model 800 Enhanced Core Processor mounted, with blue cable attached. Only the sensor, core processor and attached cable shown are included; no transmitter.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview
Two bent tubes vibrate inside the case of this 1 inch stainless Micro Motion R-Series meter, and the twist the moving fluid puts in them gives mass flow directly, with density from the vibration frequency. There are no moving parts in the flow path. This sensor carries its own calibration plate and a Model 800 Enhanced Core Processor, which connects to a separate Micro Motion transmitter.
Key Features
- Model R100S128N2BAEZYZZ, sensor S/N 21021261, 2020
- Flow cal 277.864.67; density cal D1 0, D2 1, K1 3537.31, K2 4179.29, DT 4.4, FD 2400
- Fluid temperature -100 to 150 C
- PMAX 275 psig at 25 C; PS 195 psig at TS 150 C; case rating none
- Flanges stamped 150, A182 F316/316L
- Class I Div 1 Groups C and D; Class I Div 2 Groups A, B, C and D; Class II Div 1 Groups E, F and G; intrinsically safe Exia
- Electronics input 17.3 V, 160 mA; temp code Div 1 T3A, Div 2 T6; ambient -40 to 60 C; Enclosure Type 4X
- Model 800 Enhanced Core Processor, Ex ib IIB/IIC T5, -40 to +80 C
Applications
- Replacing a 1 inch Coriolis sensor on a batching or loading skid that already has a Micro Motion transmitter
- Adding mass flow and density measurement to a pilot plant line
- Building a calibration or test stand around a known R-Series sensor
Frequently Asked Questions
What size is it?
R100 is the 1 inch (DN25) size in the R-Series.
Does the calibration plate stay with the sensor?
Yes. The flow and density calibration values are on the plate attached to the case.
Is a transmitter included?
Not included.
What am I getting, and what am I taking on?
A used R100S that was inspected and not run, with its calibration plate and its core processor. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A Coriolis meter weighs the fluid by watching how hard it fights a vibrating tube. Bolt this one into a 1 inch line and give your transmitter something worth reporting.
