ND556 AIM Ethernet Acquisition Server for NIM Bin Spectroscopy Systems
Condition

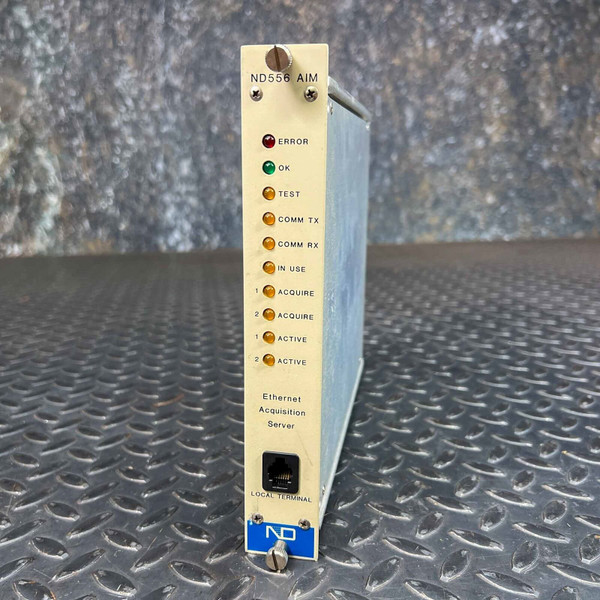

Used, clean and appears to be in good condition on visual inspection, and it was marked good before it went into storage as a spare. Tested to power up only; no further function testing. Front panel markings legible: ND556 AIM, Error, OK, Test, Comm TX, Comm RX, In Use, Acquire 1 and 2, Active 1 and 2, Ethernet Acquisition Server, Local Terminal, ND logo; rear: COMM, ADC 1, ADC 2, 55-0347. The unit pictured is representative of stock.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
Labeled on its panel as an Ethernet Acquisition Server, Nuclear Data's ND556 AIM sits in a Nuclear Instrumentation Module (NIM) bin and connects up to two ADCs, through rear headers marked ADC 1 and ADC 2, to a computer network. A modular Local Terminal jack on the front and a 15-pin COMM connector on the rear handle setup and communication, and ten LEDs show status and acquisition on each input.
Key Features
- Front panel labeled Ethernet Acquisition Server
- Two ADC input headers on the rear, ADC 1 and ADC 2
- 15-pin COMM connector on the rear
- Local Terminal modular jack on the front
- Front LEDs: Error, OK, Test, Comm TX, Comm RX, In Use, Acquire 1 and 2, Active 1 and 2
- Single-width NIM module with the standard NIM power connector
Applications
- Keeping an older Nuclear Data spectroscopy system on the network
- Replacing a failed ND556 in a two-ADC counting setup
- Stocking a spare interface for a gamma spectroscopy lab running legacy hardware
Frequently Asked Questions
Does it need a NIM bin to run?
Yes. It takes its operating power from the bin through the rear NIM connector.
How many ADCs does it connect?
Two, through the ADC 1 and ADC 2 headers on the rear.
What am I taking on?
A used ND556 that was marked good when it was put away as a spare, tested to power up only. The photos are of this module. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Its own panel calls it a server, which is a big title for one slot in a NIM bin. Slide it in and let an older system get back on the network.
