Product Overview
Five Inch Dial Bimetal Thermometer with EveryAngle Head and 1/2 Inch NPT Stem Connection
Condition

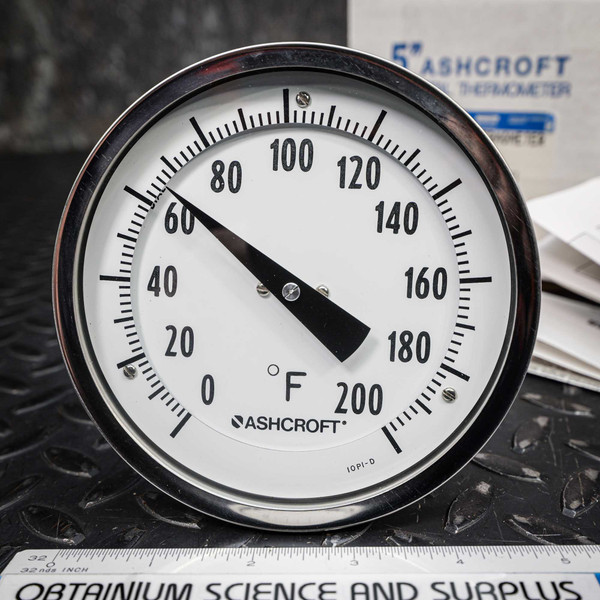

Unused, open-box new old stock in original manufacturer's packaging, clean and never installed. Sold as one thermometer. The unit pictured is representative of stock. Markings legible: ASHCROFT, DRESSER, STRATFORD, CONNECTICUT, 5" BIMETAL THERMOMETER, 50 EI 42 E 060 0/200F, SIZE: 5 INCH, TYPE: EI, CONN: 1/2" NPT EVERYANGLE, STEM LENGTH: 6 INCH, RANGE: 0/200F.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
An EI series bimetal thermometer with a 5 inch dial reading 0 to 200 degrees F, on a 6 inch stem behind an EveryAngle joint.
Key Features
- Range 0 to 200 degrees F
- 5 inch dial
- 6 inch stem; the lower 2 inches is the sensing portion
- 1/2 inch NPT EveryAngle connection
- Head angles on its joint and locks with two screws
- Hermetically sealed, all-welded stainless steel case
- 1% full span accuracy
- 200 degrees F maximum ambient temperature
Applications
- Reading hot water or process line temperature through a 1/2 inch NPT port
- Replacing a failed 50EI42E060 with the dial angled for the same line of sight
Frequently Asked Questions
Can the dial be angled after it is installed?
Yes. The head flexes on the EveryAngle joint relative to the stem and locks in place with two screws.
How deep does the stem need to go?
The lower 2 inches of the 6 inch stem is the sensing portion, so that part needs to sit in the medium being measured.
Does it come with a thermowell?
Not included.
Will it thread into a 1/2 inch NPT female port?
Yes. The connection is 1/2 inch NPT, an external thread on the EveryAngle fitting. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
EVERYANGLE, one word, for a head that angles on its joint and locks with two screws. Never installed, it still waits on its first line of sight.
