Canberra Model 8701 ADC Nuclear Instrumentation Module (NIM), Gain to 8K
Condition

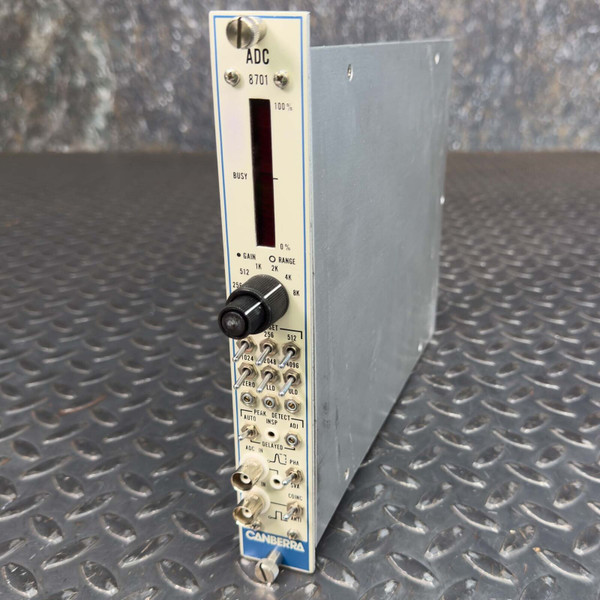

Used, clean, with no visible signs of excessive wear or damage. All switches are intact and functional. It was working before storage and has not been tested recently. The unit pictured is representative of stock. Markings legible: ADC 8701 and CANBERRA on the front panel, MODEL 8701/8706 on the rear panel.
Selling online since 1999. It ships from our Idaho warehouse the same or next business day.
Product Overview
Canberra's 8701 is an analog-to-digital converter in the Nuclear Instrumentation Module (NIM) format. It takes shaped pulses from a spectroscopy amplifier and turns each pulse height into a channel number for a multichannel analyzer. Conversion gain runs from 256 to 8K channels on the front panel selector, with digital offset toggles, lower and upper level discriminators and a choice of pulse height or sampled voltage analysis.
Key Features
- 100 MHz Wilkinson conversion, 8192 channels of resolution
- Concentric GAIN and RANGE selector: 256, 512, 1K, 2K, 4K, 8K
- OFFSET toggles marked 128, 256, 512, 1024, 2048 and 4096
- ZERO, LLD and ULD front panel trim adjustments
- PEAK DETECT section: AUTO / DELAYED toggle, INSP test point, ADJ trim
- PHA / SVA mode toggle and COINC / ANTI gate toggle
- ADC IN and gate BNC inputs on the front panel
- BUSY bar display, 0 to 100%
- Rear: DATA ribbon header, LTC/PUR connector, DEAD TIME BNC, NIM power connector, marked MODEL 8701/8706
Applications
- Feeding pulse heights from a spectroscopy amplifier into a Canberra multichannel analyzer
- Gamma spectroscopy with a germanium or sodium iodide detector chain in a research or teaching lab
- Holding a spare ADC for an existing Canberra NIM counting system
Frequently Asked Questions
Does it fit a standard NIM bin?
Yes. It is a NIM plug-in with the standard rear power connector.
Is a data cable or manual included?
Not included.
What am I getting, and what am I taking on?
A clean, complete 8701 with every switch intact, last known working before it went into storage. It has not been tested recently, so the photos are the spec. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Every peak on a gamma spectrum started as a pulse height that something had to sort into a bin. The 8701 did that sorting up to eight thousand ways, and it can go back to work in your bin.
