Ashcroft XLD-050-C-0-MB3-42-A-50X XLDP Transmitter -30/+30 in WC Unused

Ashcroft

$78.99
SKU:
000091623042KK23Store
Condition:
New
Availability:
Usually ships same or next business day.
Adding to cart… The item has been added

Product Overview

Bidirectional Differential Pressure Transmitter, Minus 30 to Plus 30 Inches Water Column, 4-20 mA

Condition

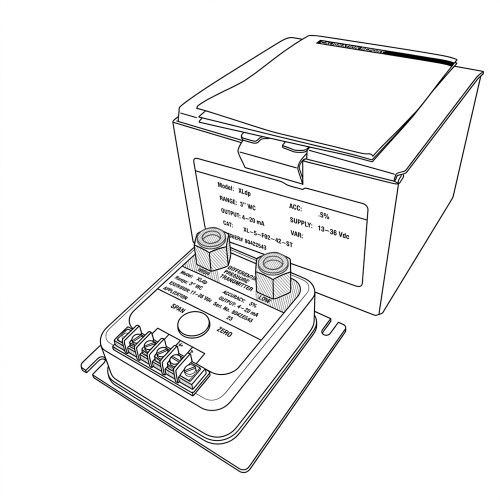

New old stock, unused. Included: the calibration report for serial number 60719526, dated 06-19-1996, and instructions. Markings legible: ASHCROFT DIFFERENTIAL PRESSURE TRANSMITTER, HIGH, LOW, MODEL XLDP, RANGE -30/+30"WC, EXCITATION 13-36VDC, ACCURACY .5%, OUTPUT 4-20mA, SER. NO. 60719526, APPLICATION, SPAN, ZERO, with - and + over the terminal strip.

Ships same or next business day from our Idaho warehouse. Selling online since 1999.

Product Overview

Ashcroft XLDP transmitter, catalog number XLD-050-C-0-MB3-42-A-50X, spanning a differential from minus 30 to plus 30 inches of water column. The full -30.00 to 30.00 "WC span maps onto a 4-20 mA output, on 13-36 VDC excitation, at .5% accuracy.

Key Features

  • Bidirectional range: -30/+30 inches of water column
  • Output: 4-20 mA
  • Excitation: 13-36 VDC
  • Accuracy: .5%
  • HIGH and LOW markings at the two ports
  • Round center cover flanked by SPAN and ZERO markings
  • Terminal strip with screw positions, two of them marked - and +
  • Serial number 60719526, identical on the unit and its calibration report

Applications

  • Holding a spare for an installed XLDP set up for a -30/+30"WC span
  • Reading a differential that swings both above and below zero into one 4-20 mA input
  • Matching a drawing or spares list that names XLD-050-C-0-MB3-42-A-50X

Frequently Asked Questions

Does it read both positive and negative differential?

Yes. The range runs from -30 to +30 inches of water column, calibrated from -30.00 to 30.00 "WC.

What excitation and output does it use?

Excitation is 13-36 VDC and the output is 4-20 mA.

Does the calibration report come with it?

Yes. Its calibration report, serial number 60719526, ships with it, together with instructions.

Is this the XLD-050-C-0-MB3-42-A-50X with the -30/+30"WC range?

Yes. Catalog number XLD-050-C-0-MB3-42-A-50X, model XLDP, -30/+30"WC, 4-20 mA, .5% accuracy, unused NOS. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Thirty inches of water either way of zero, and a calibration date of June 1996 to show for it. Read both ends of that span against your loop and see whether the two meet.
