Product Overview
Low Range 0 to 3 Inch Water Column Differential Pressure Transmitter, 4-20 mA Output, 13-36 Vdc
Condition

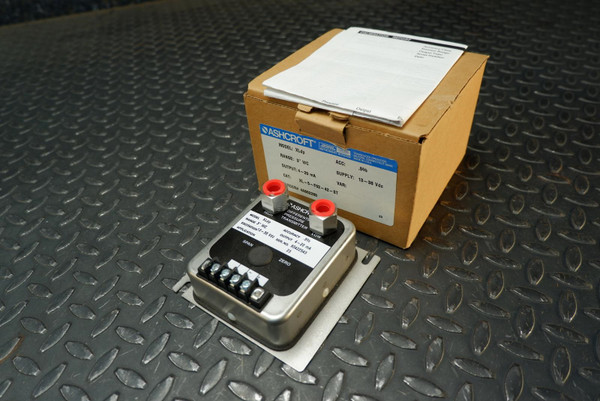

Unused new old stock. It comes with its calibration report for serial number 80422543, dated 04-28-1998, and instructions. Markings legible: ASHCROFT DIFFERENTIAL PRESSURE TRANSMITTER, HIGH, LOW, MODEL XLdp, RANGE 3" WC, EXCITATION 13-36 Vdc, ACCURACY .5%, OUTPUT 4-20 mA, SER. NO. 80422543, APPLICATION 23, SPAN, ZERO, and - and + beside the terminal strip.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
An Ashcroft XLdp differential pressure transmitter, catalog number XL-5-F02-42-ST, built for a 3 inch water column range. It turns a differential of 0.00 to 3.00 inches of water column into a 4-20 mA signal on 13-36 Vdc excitation, with .5% accuracy.
Key Features
- Range: 0.00 to 3.00 inches of water column (3" WC)
- 4-20 mA output signal
- Excitation: 13-36 Vdc
- .5% accuracy
- Two ports marked HIGH and LOW
- SPAN and ZERO marked on either side of a round center cover
- Screw terminal strip, with two positions marked - and +
- Serial number 80422543, the same serial as the included calibration report
Applications
- Keeping a spare on hand for an installed XLdp with the same 3" WC range, output and excitation
- Sending a very low differential reading to a controller or recorder with a 4-20 mA input
- Stocking a known catalog number against a drawing that calls out XL-5-F02-42-ST
Frequently Asked Questions
What range does it cover?
Zero to 3 inches of water column, 0.00 / 3.00 "WC.
What does it need for power and what does it send back?
It takes 13-36 Vdc excitation and sends a 4-20 mA output.
Is the calibration report included?
Yes. The calibration report for serial number 80422543 comes with it, along with instructions.
Does this match an XLdp called out as XL-5-F02-42-ST with a 3 inch WC range?
Yes. It is catalog number XL-5-F02-42-ST, model XLdp, range 3" WC, accuracy .5%, output 4-20 mA, and it is unused NOS. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Calibrated to a 3 inch water column span in April 1998, it has stayed unused ever since. Hold the catalog number up against your drawing and see whether the decades kept it for you.
