32-Input CAMAC Time-to-Digital Converter with Trigger Pair Outputs and Hit Indicators
Condition
Used, sold as one module, and it appears in real nice condition from visual inspection. Visual inspection only. Function testing not performed. Markings legible: LeCroy, 2277 TDC, N, MODE, HIT, COM HIT, COM, COM, CLR, T-IN, BUSY, TEST, +IN-, 0, 15, 16, 31, TRIG PAIR OUT + -, 1, 16, B16925, CAUTION CRATE POWER SHOULD BE TURNED OFF DURING INSERTION AND REMOVAL OF UNIT TO AVOID POSSIBLE DAMAGE CAUSED BY MOMENTARY MISALIGNMENT OF CONTACTS, MADE IN THE U.S.A., and two service stickers headed REPAIRED, WARRANTY, ADDITIONAL ECN and HEP, CALIBRATED, CUST. SERVICE, WARRANTY, FINAL ECN, with handwritten entries.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview

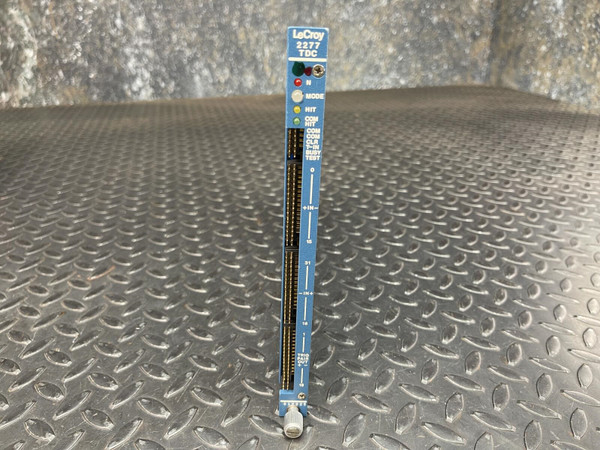

LeCroy 2277 is a 32-channel time-to-digital converter (TDC) built as a CAMAC plug-in module. Its narrow front panel carries ribbon cable headers marked +IN- for channels 0 to 15 and 16 to 31, a TRIG PAIR OUT header numbered 1 to 16, a header marked COM, COM, CLR, T-IN, BUSY and TEST, and indicators marked N, MODE, HIT and COM HIT.
Key Features
- 32 input channels on headers numbered 0 to 15 and 16 to 31
- TRIG PAIR OUT header with pairs numbered 1 to 16
- Front header marked COM, COM, CLR, T-IN, BUSY and TEST
- N, MODE, HIT and COM HIT front indicators
- Card edge contacts at the rear and a thumbscrew at the foot of the panel
- Serial B16925
Applications
- Replacing a failed 2277 in an existing CAMAC crate
- Keeping a spare 2277 for a timing readout chain already built around one
Frequently Asked Questions
How many input channels does it have?
32. The +IN- headers cover channels 0 to 15 and 16 to 31.
What other connections are on the front?
A TRIG PAIR OUT header with pairs numbered 1 to 16, and a header marked COM, COM, CLR, T-IN, BUSY and TEST.
Has it been tested?
No. It appears in real nice condition from visual inspection, and function testing was not performed. You take on a used, untested module. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Thirty-two inputs numbered 0 to 31 on one narrow panel, with a caution about crate power on the cover. What gets timed through it is up to the crate it lands in.
