Product Overview
Detector Flow Cell for High-Pressure Systems, Optional Accessory for the SPD-10A and SPD-10AV
Condition

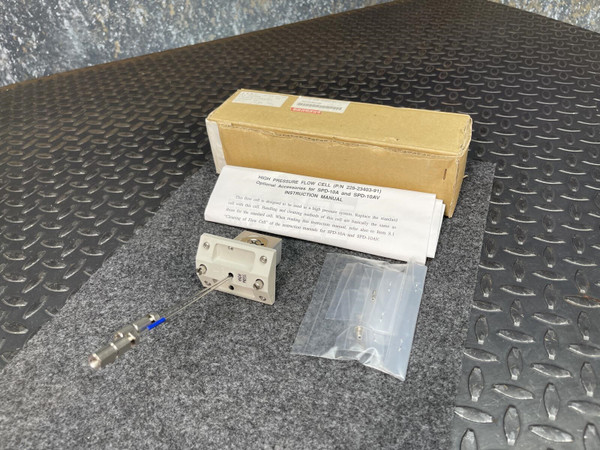

Unused new old stock in the manufacturer's packaging, which was opened for inspection and photos only. Sold as one flow cell with its instruction sheet and a small bag of loose parts. Markings legible: UPSIDE with an arrow and HIGH PRESS on the cell; 228-23403-91 FC, HIGH PRESS.FLOW CELL,SPD-10A(V, G2, S4B1, EA and barcode 228-23403-91 on the carton label; HIGH PRESSURE FLOW CELL (P/N 228-23403-91), Optional Accessories for SPD-10A and SPD-10AV, INSTRUCTION MANUAL on the sheet.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview
A Shimadzu high-pressure flow cell, part number 228-23403-91, an optional accessory for the SPD-10A and SPD-10AV detectors. It takes the place of the standard cell when the detector runs in a high-pressure system, and it also fits the SPD-20A, SPD-20AV and SPD-10A(V)vp detectors.
Key Features
- Optional accessory for the SPD-10A and SPD-10AV
- Replaces the standard cell for high-pressure systems
- 6 mm optical path and 3 µL cell volume
- 5600 psi pressure limit
- Gray face with UPSIDE arrow and HIGH PRESS lettering
- Two knurled thumbscrews and four corner screws on the face
- Two runs of fine tubing with blue sleeves, each ending in a fitting
- Bright metal rear block with a round recess
Applications
- Replacing the standard flow cell in an SPD-10A or SPD-10AV detector for high-pressure work
Frequently Asked Questions
Which detectors is it for?
The SPD-10A and SPD-10AV, plus the SPD-20A, SPD-20AV and SPD-10A(V)vp.
Does the instruction sheet come with it?
Yes. The printed instruction sheet comes with the cell, along with a small bag of loose parts.
Is this the high-pressure cell rather than the standard cell?
Yes. It is the high-pressure cell, part number 228-23403-91, unused NOS in packaging opened for inspection and photos only. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
UPSIDE comes with an arrow on this cell, which settles the one argument a flow cell can start at the bench. An SPD-10A owner will know the number on sight.
