Square D 9012GJW21 Adjustable Differential Pressure Switch, DPDT, Unused

Square D

$388.99
SKU:
000092824015mm24LSMulti
Condition:
New
Brand:
Square D
Adding to cart… The item has been added

Product Overview

Class 9012 Type GJW-21 Differential Pressure Switch, 15-825 psid, Factory Set 400 psig

Condition

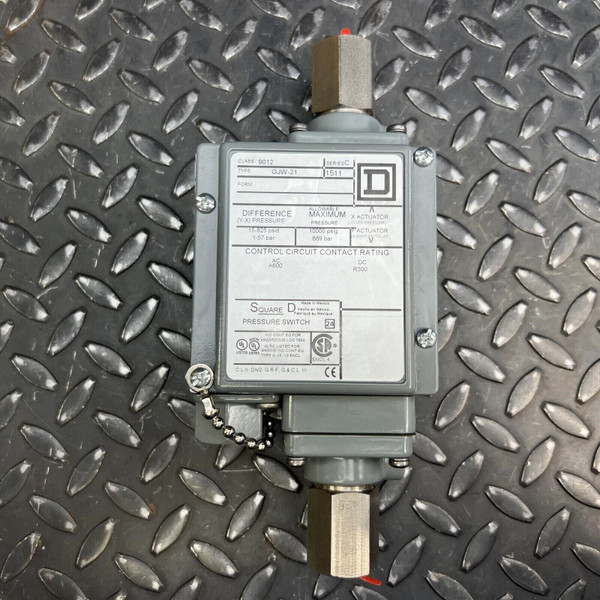

Unused new old stock in its original Square D carton, which has been opened. The instruction sheet is not included. Nameplate markings legible: Class 9012, Type GJW-21, Series C, 1511, Difference (Y-X) Pressure 15-825 psid, Allowable Maximum Pressure 10000 psig, Control Circuit Contact Rating AC A600, DC R300. Factory set operating points label: Difference Pressure 400.00 psig, Differential 97.0 psig.

Ships same or next business day from our Idaho warehouse. Selling online since 1999.

Product Overview

Square D's Class 9012 GJW-21 watches the difference between two pressures rather than either one alone. The higher pressure goes to the Y actuator, the lower to the X actuator, and the DPDT contacts change state when the gap between them crosses the set point. This one left the factory set to trip at 400 psig on decreasing difference, with a 97 psig differential before it resets, and the difference setting adjusts across a 15 to 825 psid span.

Key Features

  • Difference (Y-X) pressure range 15-825 psid (1-57 bar)
  • Allowable maximum pressure 10000 psig (689 bar)
  • Factory set: 400.00 psig difference, decreasing, 97.0 psig differential
  • Adjustable differential
  • DPDT contacts, control circuit rating AC A600, DC R300
  • Type 4, 4X and 13 enclosure per the carton label
  • Two pressure ports with hex fittings, conduit entry on the switch housing
  • Carton label: 9012 GJW-21 Ser. C, 36326414-008, made in Mexico

Applications

  • Tripping an alarm or shutdown when the pressure drop across a filter or strainer grows past the set point
  • Confirming a pump is making head by watching suction against discharge pressure
  • Replacing a failed GJW-21 in an existing control panel with the same class and type

Frequently Asked Questions

Is this a gauge pressure switch or a differential switch?

Differential. It compares the Y port against the X port, and the 15-825 psid figure on the nameplate is the range of that difference.

Can the set point be changed from 400 psig?

Yes. The difference setting adjusts within the 15-825 psid range on the nameplate.

Is the instruction sheet included?

Not included.

Will it match a GJW-21 already called out on a drawing?

The nameplate and the carton label both read Class 9012, Type GJW-21, Series C, so the designation matches one for one, and this switch has never been installed. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Most switches care about one pressure. This one only cares about the argument between two of them, and it will speak up the moment the gap gets too small.
