Square D SC1624M100S All-In-One 100A CSED, 4 Ft L1420 Plug Cord, Used

Square D

$169.99
SKU:
081923039GG23
Condition:
Used
Availability:
Usually ships same or next business day.
Adding to cart… The item has been added

Product Overview

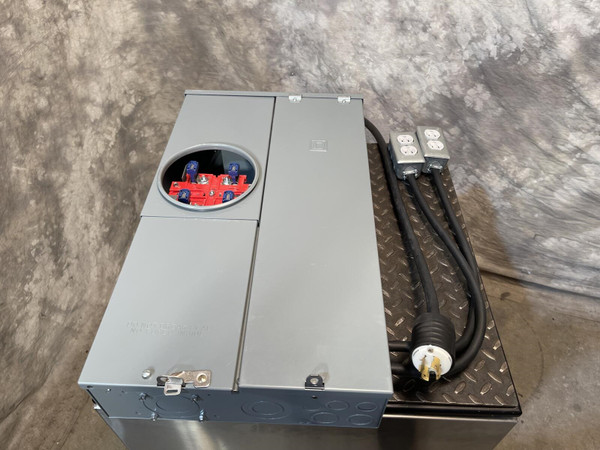

Combination Meter Socket and Breaker Panel, Fed by a Short Locking-Plug Cord, with Two Duplex Outlet Cords

Condition

Used and in good condition, clean, functional and tested, with light cosmetic marks and rubs from use and storage, a clean interior, a secure enclosure, and breakers and wiring intact. It comes wired with about 4 feet of cord ending in a Pass & Seymour L1420 Turnlok locking plug rated 20A 125/250V, plus two duplex receptacles on cords of approximately 44 inches, each fed by its own single-pole breaker; the meter socket is empty. Markings legible: SQUARE D, CAT. NO. SC1624M100S, SERIES M01, Rainproof Type 3R Enclosure, Mains 125A Max., 120/240V~ 1Ø-3W, Meter socket rated 125A (100A continuous), Max. Branch Breaker - 125A, Suitable for underground or overhead service, SUITABLE FOR USE WITH 75° C COPPER OR ALUMINUM LINE CONDUCTORS, 40271-160-01, and SERVICE DISCONNECT.

Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.

Product Overview

An all-in-one unit puts everything in one surface-mount box: the utility meter socket, the main service disconnect and the branch breakers. On this SC1624M100S the main is a two-pole breaker with handles marked 100, and it has been fitted with a short supply cord and two outlet cords so the panel works as a plug-fed power center.

Key Features

  • Two-pole 100 A main breaker serving as the service disconnect
  • 16 breaker spaces, up to 24 circuits, 10 kA short-circuit current rating
  • Ringed meter socket with no bypass
  • Square D Type HOM breakers, with the two outlet breakers' handles marked 20
  • Directory hand-marked at spaces 11 and 12 for the two outlet circuits
  • L1420 Turnlok locking plug, 20A 125/250V, on about 4 feet of cord
  • Two mounting straps on the back of the enclosure
  • Line-side and service ground lugs sized AWG 6 through 2/0, aluminum or copper

Applications

  • Running shop tools from a generator or panel receptacle that takes an L14-20 plug, with the panel parked right beside it
  • Giving an electrical class a combination meter and breaker enclosure to open up and trace
  • Removing the added cords and having an electrician install the enclosure as a service entrance

Frequently Asked Questions

Which breakers feed the two outlet cords?

Spaces 11 and 12 on the directory, each a single-pole Type HOM breaker with a handle marked 20.

Does the socket have a ring?

Yes. It is a ringed socket without a bypass, rated 125A with 100A continuous.

Will the supply cord reach a receptacle across the room?

No. The cord runs about 4 feet to its L1420 plug, so the panel has to sit close to the receptacle that feeds it. You get the SC1624M100S with its breakers, that short plug cord and both outlet cords, used, clean and functional. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Four feet of cord keeps this panel on a short leash next to whatever feeds it. Put it beside the L14-20 and let the two outlet cords carry the power to the work.
