Square D QO612L100DS QO Indoor Load Center, 100A 6 Space 12 Circuit, Unused

Square D

$59.96
SKU:
000061023020W23LS
Condition:
New
Availability:
Usually ships same or next business day.
Adding to cart… The item has been added

Product Overview

QO Main Lug Panel for 120/240 V Single-Phase Service, 100 A Mains, Surface Cover with Door

Condition

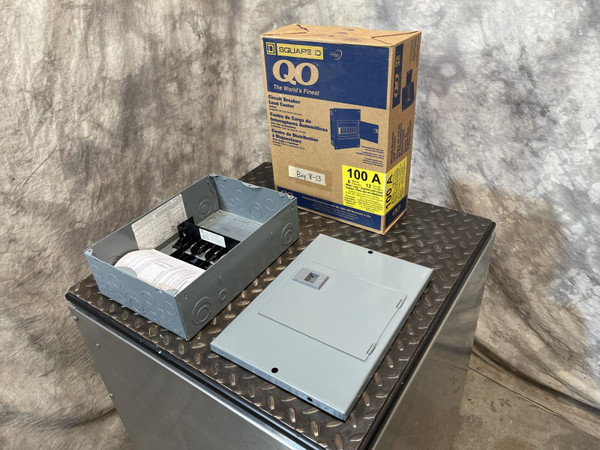

Unused new old stock in the manufacturer's packaging, which was opened for inspection and photos only. It comes as the enclosure with its interior installed, plus the front cover with door. Markings legible: Square D, QO, The World's Finest, 100A, 6 Spaces, 12 Circuits, 1Ø 120/240 V~ Max., 50/60 Hz, Load Center, QO612L100DS, Series G04, Main Lugs Only, Indoor, UL, Made in Mexico, 73, 8.5 lbs. / 3,9 kg, 78562, 10432, 40299-127-04, UPC 7 85901 78562 0; QO612L100DS, 10432, 73 on the enclosure; QO Load Center, Catalog No. QO6-12L100DS, Series G04, Type 1 Enclosure, 120/240 Vac Max. 1 Ph, 50/60 Hz, Mains 100 A Max., 40281-288-02 inside the cover; QO6-12L100DF/S, QOB6-12L100DF/S, Series G04, UL Listed Class CTL Enclosed Panelboard Issue No. C-2491, Suitable for use with 75°C copper or aluminum main conductors, Made in Mexico, 73, 40269-895-08; QON612L100, Use in box QOB612L100F/S, QOB612L100D(F/S), QOB612L100RB, 73, 40269-795-04 on the interior.

Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.

Product Overview

Square D QO612L100DS is an indoor main lug load center rated 100 A mains at 120/240 V single-phase, 3-wire, 50/60 Hz. It has 6 spaces and takes up to 12 circuits, using Square D type QO, QOA or CTL QOT circuit breakers. The enclosure is NEMA Type 1, 12.57 by 8.88 inches on the face and 3.80 inches deep, with a surface cover and door.

Key Features

  • 100 A mains, main lugs only
  • 120/240 V single-phase, 3-wire, 50/60 Hz
  • 6 spaces, 12 circuits maximum, up to 6 tandem breakers
  • 10 kA short-circuit current rating
  • Tin-plated aluminum bus
  • Main conductors: 75°C copper or aluminum
  • Indoor NEMA Type 1 enclosure, 12.57 x 8.88 x 3.80 in
  • UL Listed, Class CTL enclosed panelboard, Series G04

Applications

  • Service equipment, once a main breaker is installed as the service disconnect
  • Service equipment with no more than six main disconnecting means, when not used as a lighting and appliance branch circuit panelboard

Frequently Asked Questions

Does it come with circuit breakers?

No. The interior has open breaker spaces with none installed. It takes Square D type QO, QOA or CTL QOT breakers.

Is a ground bar included?

No. The ground bar kit is catalog number PK7GTA, purchased separately.

Which circuit numbers does the directory use?

Circuits 2 through 7; directory positions 1 and 8 are not used.

Will it take tandem breakers to reach 12 circuits?

Yes. Each space takes two single poles as one plug-on type QOT breaker, or a single pole QO, for up to 12 circuits across the 6 spaces. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

Six spaces, 12 circuits, 100 amps of mains: the gap between the first two numbers is the QOT tandem breaker. Count your circuits first, and the spaces sort themselves out.
