Product Overview
ASCO Molded Solenoid Coil 222345-009D, Marked 120/60 HB and 100/50
Condition

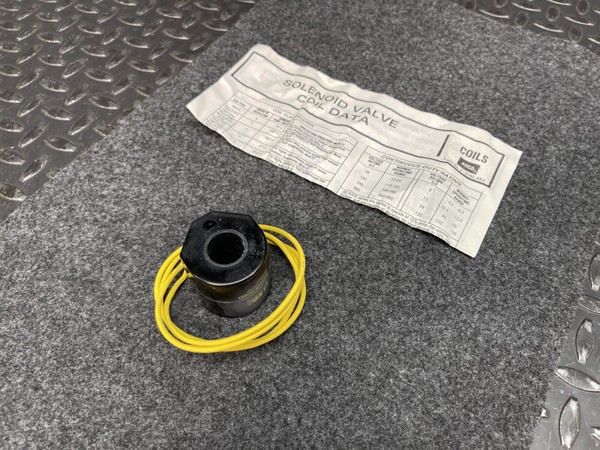

Unused new old stock. It does not come in an ASCO box. The ASCO Solenoid Valve Coil Data sheet, Form V-5192 AR4, is included. The unit pictured is representative of stock. Markings legible on the coil: 222345-009D, 100/50, 120/60 HB, 100/60 HT, MP-C-077, with an ASCO date wheel reading 89 90 91.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview
ASCO's 222345-009D is a molded replacement coil for an ASCO solenoid valve, marked for 120 volts at 60 Hz in HB service and for 100 volts at 50 Hz. It fits over the valve's solenoid core tube, and its two lead wires connect to the control circuit. Replacing a coil this way puts a valve back in service without opening the line.
Key Features
- Coil number 222345-009D molded on the body
- Marked 120/60 HB, 100/50 and 100/60 HT
- Rated 20 watts
- Black molded coil with a center bore
- Two yellow lead wires with stripped ends
- ASCO coil data sheet Form V-5192 AR4 included
Applications
- Replacing a failed coil on an ASCO solenoid valve while the valve body stays piped in place
- Keeping a matched spare in the maintenance crib for a valve that cannot be down long
Frequently Asked Questions
Is the valve included?
Not included. This is the coil only.
What voltage is it for?
It is marked 120/60 HB, which is 120 volts at 60 Hz, and also 100/50 and 100/60 HT.
Is any paperwork included?
Yes. ASCO's Solenoid Valve Coil Data sheet, Form V-5192 AR4, with coil ratings and replacement instructions.
Which valves is it the replacement coil for?
ASCO combustion gas solenoid valves including JB8214240CSA, JB8214290CSA, K3A652U, K3A662U, K3A672U, K3A682U, K3A772U and K3A782U, and S261 and S262 valves such as S261SG02N3EG5 and S262SG02N3EG5.
How do I know it matches the coil I am replacing?
Read the number molded on the old coil. This one reads 222345-009D with 120/60 HB, and a match on both means the same coil. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A solenoid valve is a coil and a plunger arguing over a spring, and when the valve stops clicking, the coil is the first place to look. If the old one says 222345-009D, the answer is right here.
