Product Overview
ifm Inductive Proximity Switch, 6 mm Sensing Range, 10 to 36 V DC Supply
Condition

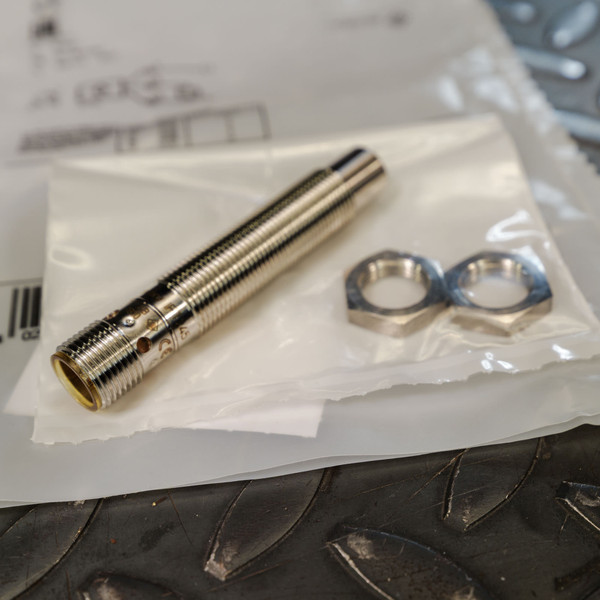

Unused new old stock, not installed, with no signs of field use. Kept in original packaging; the packaging may show minor handling from storage. Visual inspection only; no electrical testing performed. Each unit comes with two hex mounting nuts. No cables are included. Bag print legible: IFT245, IFK3006-BPKG/AM/P/US-104-DPS, Made in Germany, CE, EAC and cULus Listed IND. CONT. EQ. 11ZA. The photos are representative of this stock.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview
Inductive proximity sensors switch when metal comes within range of the sensing face, with nothing touching the target. ifm electronic of Essen, Germany, prints this one's ratings and wiring on its bag: a 6 mm sensing distance, a 10 to 36 V DC supply and a 100 mA output, with a plug-in connector at the rear of a threaded barrel.
Key Features
- ifm article IFT245, type string IFK3006-BPKG/AM/P/US-104-DPS
- Sensing distance s: 6 mm, as printed
- Supply UB: 10...36 V DC
- Output current Ie: 100 mA, marked SCP
- IP 68 and IP 69K marks on the bag
- cULus Listed IND. CONT. EQ. 11ZA, CE and EAC marks
- Wiring diagram on the bag: pin 1 to L+, pin 3 to L-, load on pin 4
- Threaded barrel body with a plug-in connector end
- M12 x 1 thread, non-flush mounting, 70 mm long
- PNP output, normally open, 250 Hz switching frequency
- M12 connector, A-coded, gold-plated contacts
- Stainless steel 1.4404 (316L) housing and sensing face
- Ambient operating range 0 to 100 °C
Applications
- Replacing a failed IFT245 on a machine frame, conveyor or fixture
- Holding a spare for a line that already runs ifm sensors
- Detecting a metal flag, bracket or part at a fixed point in a PLC-controlled cell
Frequently Asked Questions
What supply voltage does it take?
10 to 36 V DC. The bag reads UB: 10...36 V DC, with an output current of 100 mA.
How is it wired?
The bag diagram shows pin 1 to L+, pin 3 to L-, and the switched load on pin 4.
Is a cable included?
Not included. Each sensor comes with its two hex mounting nuts.
Is the output PNP or NPN?
PNP, normally open, switching up to 100 mA.
Will it drop in for an IFT245 that failed on my machine?
Yes, if the old sensor or its parts list reads IFT245 or IFK3006-BPKG/AM/P/US-104-DPS. Both lines are printed on this bag, so match either one before you swap it in. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The bag spells out its own wiring in a few square inches of print: L+ on pin 1, L- on pin 3, the load on pin 4. Hold it next to the old sensor's drawing and check the match.
