Digital Flow Readout for a Differential Pressure 4-20 mA Loop, Calibrated 00.0 to 100.0
Condition
Unused new old stock, clean and in excellent condition. Comes with its owner's manual; no mounting hardware or additional accessories. Markings legible: MODEL 509-2, INPUT 4mA and 20mA, OUTPUT 00.0 and 100.0, NEWPORT ELECTRONICS, INC., S and Z at the front adjusters, CAL DATE 9-12-96, CAL LOT 104 72 and MADE IN U.S.A.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview

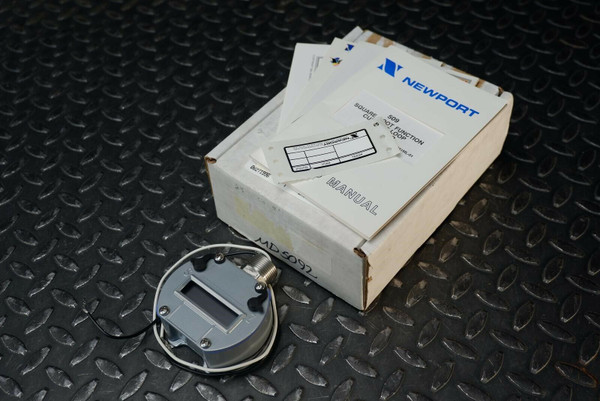

A Newport 509 series square root function current loop indicator, set so a 4 mA signal shows 00.0 and 20 mA shows 100.0. Square root extraction turns a differential pressure signal into a reading that tracks flow.
Key Features
- Square root function
- Input: 4 to 20 mA
- Display: 00.0 at 4 mA, 100.0 at 20 mA
- Two adjusters on the front, marked S and Z
- Two flying leads, one black and one white, 0.3 m long, #18
- 1/2 inch EMT male threaded fitting on the housing
Applications
- Reading percent flow at the line from an orifice plate or other differential pressure transmitter
- Replacing a failed 509-2 on an existing flow loop
- Adding a local readout to a 4-20 mA flow signal already wired back to a controller
