Product Overview

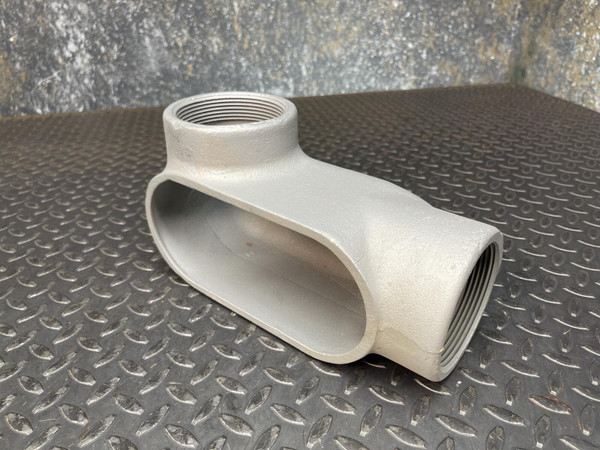

Appleton Form 7 UNILETS 3 Inch Type LL Threaded Conduit Outlet Body
Condition
Unused new old stock in clean condition. Sold each. Markings legible: FM 7 APPLETON 3 LL87, with UL and CSA markings on the exterior lip, and NO. 250 MCM MAX. cast inside the cavity. Cover and gasket are not included.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
A no-hassle satisfaction guarantee on every order.
Product Overview
Appleton LL87 is a Form 7 (FM7) UNILETS conduit outlet body configured with two 3-inch female threaded hubs positioned at a 90-degree left-hand angle. The side opening provides direct access for pulling, splicing, and maintaining heavy conductors through directional turns without exceeding cable bending radius limits. Cast in durable Grayloy iron, this fitting features internal markings rated for conductors up to 250 MCM and an interior capacity of 133 cubic inches. Designed for use with threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC).
Key Features
- Configuration: Type LL with access opening on the left side of the 90-degree conduit turn
- Hub size: 3-inch female tapered NPT threaded hubs
- Body construction: Grayloy iron casting
- Internal volume: 133 cubic inches
- Conductor rating: Maximum 250 MCM wire size cast internally
- Standards: UL Listed (UL 514A, UL 514B) and CSA Certified (C22.2 No. 18.3)
- Conduit compatibility: Rigid metal conduit (RMC) and intermediate metal conduit (IMC)
Applications
- Pulling 250 MCM electrical service conductors through a 90-degree turn in heavy commercial or industrial conduit runs
- Providing access for maintenance, taps, or wire inspection at building columns and interior wall corners
- Serving as a rugged, heavy-wall fitting for shop power drops, machinery feeds, and large off-grid power installations
Frequently Asked Questions
Does this conduit body include the cover and gasket?
Not included.
What type of conduit threads directly into this body?
Both 3-inch female hubs feature tapered threads designed for standard threaded rigid metal conduit (RMC) or intermediate metal conduit (IMC).
Will standard Form 7 covers from other brands fit this body?
Yes. Form 7 conduit bodies share an industry-standard footprint, allowing standard 3-inch Form 7 covers and gaskets to bolt directly to this casting. The price per piece drops at each step in the price-break table on this page.
Solid iron, clean tapered threads, and plenty of room to pull heavy copper through a tight corner. Heavy-duty commercial infrastructure ready to bolt into your next feeder run.
