Product Overview
1 Watt K-Band TWT Amplifier for 18.0 to 26.5 GHz, with Front Waveguide Ports
Condition
Used, in fair cosmetic condition with scuffs and scratches from normal use and storage. Tested to power up only; no further function testing. No manuals or accessories included. Markings legible: HUGHES, Hughes Aircraft Company, Electron Dynamics Division, 18.0 to 26.5 GHz at 1.0 Watts, Model 8001H11F000, Input Power 110 Volts 60 Cyc. 3.0 Amp., CAUTION DO NOT EXCEED DRIVE INDICATED.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Satisfaction guaranteed, every time.
Product Overview

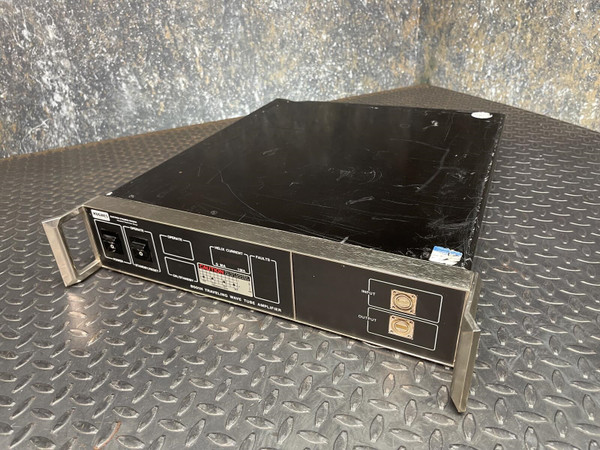

A traveling wave tube amplifier from the Electron Dynamics Division of Hughes Aircraft Company, Industrial Electronics Group. It is rated 1.0 watts across 18.0 to 26.5 GHz, with INPUT and OUTPUT waveguide ports on the front panel and a drive chart printed beside the controls.
Key Features
- 18.0 to 26.5 GHz at 1.0 Watts, Model 8001H11F000
- Front INPUT and OUTPUT waveguide ports with four-hole flanges
- POWER and OPERATE STANDBY/RESET rocker switches
- Indicator windows marked OPERATE, ON/STANDBY and FAULTS
- HELIX CURRENT window scaled 0 MA to 1MA
- CAUTION DO NOT EXCEED DRIVE INDICATED chart, drive in mW against 18.0 to 26.5 GHz
- Rear J1 D-sub connector, a round fitting marked LCL RMT and a power inlet
- Input power 110 volts, 60 cycles, 3.0 amps
Applications
- Restoring a K-band TWTA for an 18 to 26.5 GHz test bench
- Replacing a failed 8001H in an existing microwave test setup
Frequently Asked Questions
What input power does it need?
110 volts, 60 cycles, 3.0 amps.
Is a power cord included?
Not included.
Has the RF output been checked on this unit?
No. It was tested to power up only, with no further function testing. You get an 8001H that powers up and carries scuffs and scratches from use and storage, and you take on checking gain and output across the band. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The front panel carries its own warning, DO NOT EXCEED DRIVE INDICATED, plotted across 18 to 26.5 GHz. Read that chart before any signal goes in.
