Product Overview
National Instruments SCXI-1313 Attenuator Terminal Block for SCXI-1125 - 300 Vrms, 100:1 Divider, 18-Terminal
Condition

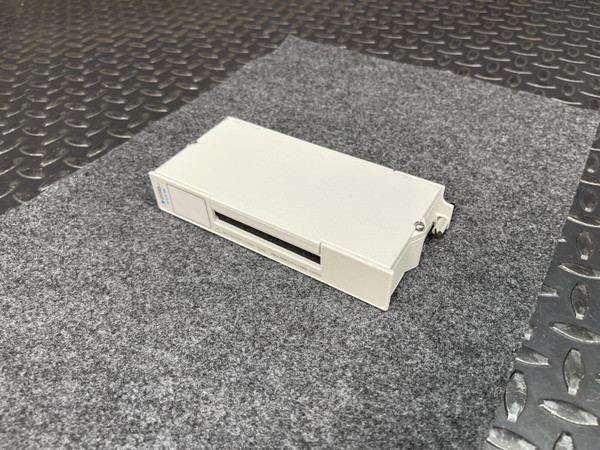

Used, sourced from a government research facility. Visual inspection confirms normal wear consistent with prior lab use - minor surface scuffs on the off-white enclosure, mounting bracket with screws intact, multi-pin edge connector shows no chips, cracks, or corrosion. Front edge markings "MAX 300V/CAT II CHAN - CHAN" and "MAX 300V/CAT II CHAN - EARTH" are clearly legible. Part No. 187009A-01, Serial No. 124D10A, CE marked, manufactured in Hungary. Evaluation: Visual inspection only. Function testing not performed. Photos show the specific unit you will receive.
Carefully packed and shipped same or next business day from our Idaho warehouse. Honest equipment and straightforward service.
Online since 1999. We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
National Instruments SCXI-1313 is a shielded high-voltage attenuator terminal block designed exclusively for the SCXI-1125 isolation amplifier module. Each of the 8 analog input channels carries a precision 100:1 resistive voltage divider, enabling direct connection of signals up to 300 Vrms or ±300 VDC to an NI SCXI data acquisition system. Attenuators can be bypassed per channel for low-voltage measurements. Eighteen screw terminals total - 8 pairs for analog inputs, 1 pair for chassis ground - accept wire up to 16 AWG. The terminal block mounts directly to the SCXI-1125 and operates within the NI-DAQmx software environment, including LabVIEW, LabWindows/CVI, and Measurement and Automation Explorer (MAX). Compliant with IEC 61010-1, UL 3111-1, and CAN/CSA C22.2 No. 1010.1.
Key Features
- Voltage measurement range: up to 300 Vrms or ±300 VDC per channel
- Precision 100:1 resistive voltage divider on each of 8 analog input channels
- Attenuator bypass available for low-voltage signal measurement
- 18 screw terminals: 8 analog input pairs plus 1 chassis ground pair
- Maximum wire gauge: 16 AWG; terminal spacing 0.5 cm (0.2 in.) center-to-center
- CAT II overvoltage category rating, marked on front edge
- Compatible with NI-DAQmx driver software and LabVIEW, LabWindows/CVI, MAX
- Electrical safety: IEC 61010-1, UL 3111-1, CAN/CSA C22.2 No. 1010.1
- Operating temperature: 0 to 50 °C; storage: -20 to 70 °C
- Non-condensing humidity: 10 to 90%
- CE marked; manufactured in Hungary
Applications
- Connecting high-voltage sensors or power-line signals to an SCXI-1125 module - stripping wire, routing through strain-relief, seating into screw terminals, and confirming channel configuration in MAX before a measurement run
- Acquiring bus voltage or motor drive signals at 300 Vrms in an industrial automation test stand, where the 100:1 divider brings the input within the SCXI-1125 measurement range without external signal conditioning hardware
- Bypassing the attenuator on select channels to monitor low-voltage transducer outputs on the same terminal block during a mixed-signal acquisition campaign
- Replacing a worn or missing SCXI-1313 in an existing SCXI chassis to restore a validated test fixture without redesigning the signal conditioning chain
- Lab and OEM data acquisition setups requiring compliance with IEC 61010-1 and UL 3111-1 when hazardous voltages are present on the test bench
Frequently Asked Questions
Which NI module does the SCXI-1313 connect to?
The SCXI-1313 is designed specifically for the National Instruments SCXI-1125 isolation amplifier module. It does not mate with other SCXI modules.
What chassis is required?
An NI SCXI chassis or a PXI/SCXI combination chassis is required. The SCXI-1313 installs on the front of the SCXI-1125, which occupies a chassis slot.
How does the SCXI-1313 differ from the SCXI-1313A?
The SCXI-1313 supports up to 300 Vrms or ±300 VDC per channel. The SCXI-1313A is rated to 150 Vrms or ±150 VDC and adds a calibration EEPROM that stores gain-correction constants for the attenuator circuitry. In NI-DAQmx and MAX software, both variants share the "SCXI-1313" designator.
Is a safety earth-ground connection required?
Yes. When hazardous voltages are present - defined as 30 Vrms or higher, 42.4 Vpeak or higher, or 60 VDC or higher - NI specifies that a safety earth-ground wire must be connected to the terminal block's ground lug to maintain compliance with UL 3111-1 and IEC 61010-1.
Does this unit include the SCXI-1125 module or chassis?
Not included. This listing is for the SCXI-1313 terminal block only.
High-voltage measurement used to mean a rack full of isolation transformers, attenuator boxes, and hand-built wiring harnesses. The SCXI-1313 collapsed all of that into a single shielded terminal block that snaps onto the front of an SCXI-1125 - government lab provenance and all. Whoever picks this up inherits a direct path to 300-volt data acquisition that still works exactly as the engineers who specified it intended.
