Product Overview
Compound-Range Vacuum and Pressure Sensor with a 0-10 VDC Signal
Condition

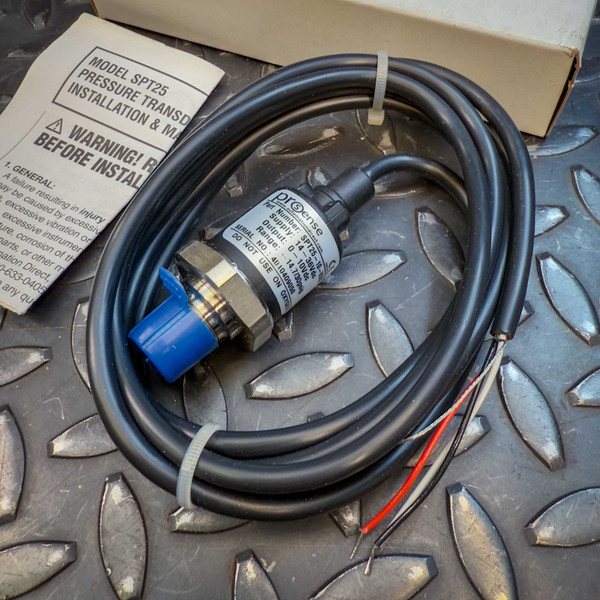

Unused new old stock, clean and in excellent condition. Comes with its attached cable and a printed Model SPT25 installation sheet. Markings legible: prosense, www.automationdirect.com, Part Number SPT25-10-, Supply 14-36Vdc, Output 0-10Vdc, Range -14.7/30psig, SERIAL NO. 4010409050 and DO NOT USE ON OXY.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
An SPT25 series pressure transmitter, sold under the ProSense line by AutomationDirect, in the compound -14.7 to 30 psig range with a voltage output. One sensor covers both vacuum and positive pressure on the same port.
Key Features
- Range: -14.7 to 30 psig
- Output: 0 to 10 VDC
- Supply: 14 to 36 VDC
- 1/4 in NPT male process port
- Integral 6.6 ft (2 m) shielded cable ending in bare leads
- Accuracy: ±0.5% of full range
- Stainless steel thin film sensing element
- Wetted parts: 304 and 17-4PH stainless steel
- Not for oxygen service
Applications
- Feeding a PLC analog voltage input from a line that swings between vacuum and pressure
- Replacing a failed SPT25 of the same range on an existing machine
- Logging a vacuum pump or receiver tank on a 0-10 V data logger
Frequently Asked Questions
Does it need a 24 V supply?
No. 24 VDC is one choice inside its 14 to 36 VDC supply range.
What thread is the process port?
1/4 in NPT male.
Is it a current or a voltage output?
Voltage. The signal is 0 to 10 VDC.
Will it read vacuum?
Yes. The range reaches down to -14.7 psig and up to 30 psig. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The bottom of this scale is -14.7 psig, about as empty as a line gets at sea level. The top stops at 30, so one sensor watches both sides of zero.
