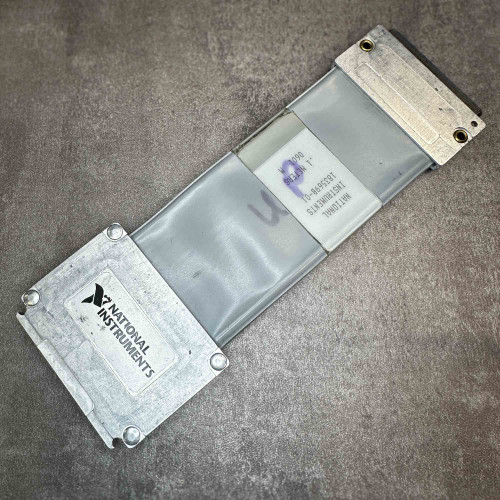

National Instruments 1835698-01 0.1 Meter DAQ Cable
Product Condition
Used and removed from working equipment. These cables have some dirt and wear from previous use and installation but are otherwise in good condition.
Product Overview
The National Instruments 1835698-01 is a 0.1 meter (4-inch) shielded DAQ cable. It provides a reliable connection between National Instruments data acquisition (DAQ) devices and accessories, ensuring signal integrity in compact setups.
Key Features
- 68-pin SCSI-style D-sub or VHDCI connector compatible with NI DAQ modules
- Shielded twisted-pair design reduces noise and crosstalk
- Signal wires: 30 AWG; Power lines: 26 AWG
- Analog impedance: ~66 Ω; Digital impedance: ~107 Ω
- Analog capacitance: ~23 pF/ft; Digital capacitance: ~14.5 pF/ft
- Time delay: ~1.55 ns/ft
- DC resistance: 30 AWG ~0.099 Ω/ft; 26 AWG ~0.040 Ω/ft
Applications
- High-performance DAQ systems requiring accurate signal transfer
- Bench setups needing short, shielded interconnects
- Compatible with National Instruments M-Series, X-Series, and S-Series DAQ cards
Frequently Asked Questions
What is Obtainium Science and Surplus?
We source quality equipment from businesses and institutions across the U.S. Items are professionally handled and ship quickly from Idaho.
How fast is shipping?
We ship quickly from Idaho. Most items ship within one business day.
What’s included?
One (1) National Instruments 1835698-01 0.1 Meter NI-DAQ Cable as shown in the photos.
Can I get more info before buying?
Yes - Ask away! We’ll get back to you with a straight answer—no runaround.
What does "Used and removed from working equipment" mean?
The cable was previously installed in equipment that was functional when removed. It shows normal signs of use such as dirt and wear but remains in good condition.
