Product Overview
Configurable Connector Accessory Enclosure Fitted with a Pair of 68-Terminal Screw Blocks
Condition

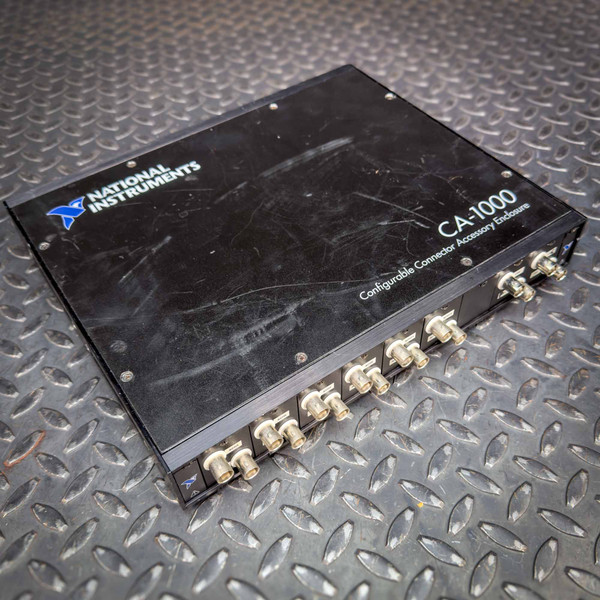

Used, clean, inspected and in good condition, though the enclosure exterior has scuffs, scratches and cosmetic blemishes. Visual inspection only. Function testing not performed. Two CB-68LPR terminal blocks are installed inside. Markings legible: CA-1000 Configurable Connector Accessory Enclosure on the lid, and CB-68LPR and CE on the boards. The enclosure pictured is representative.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
Product Overview
Portable NI data acquisition setups use this flat, configurable box to house field wiring, with interchangeable panelettes on the front and rear for whatever jacks a job needs. It holds up to two CB-68LPR blocks, each with 68 screw terminals and a 68-pin connector, and takes up to nine single-width panelettes on the front and nine on the rear.
Key Features
- Two CB-68LPR blocks installed, 68 screw terminals each
- Two 68-pin connectors on one side panel, one per block
- Up to 9 single-width panelettes on the front and 9 on the rear
- Five locations for external cable connections
- BNC and thermocouple panelettes take two connectors each
- Size: 12.06 x 10.00 x 1.73 in (30.63 x 25.40 x 4.39 cm)
- Rubber feet on the underside for desktop use, with room for a laptop on top
Applications
- Putting the wiring for two 68-pin DAQ devices in one box beside a laptop in the field
- Replacing a damaged connector enclosure on a mobile test cart
- Building a custom front panel from BNC or thermocouple panelettes
Frequently Asked Questions
How many CB-68LPR blocks can it hold?
Two, and this one has both. They sit in positions A, B, C or D, though a pair cannot use both A and D or both B and C.
Can I mount it in a 19 inch rack?
Yes, with the optional rack-mount kit, once the rubber feet come off. A stack-mount kit is the other option for setting several on top of each other.
Will an SCB-68 fit inside instead?
Yes, once the CB-68LPR blocks come out. The SCB-68 is one of its supported internal accessories, along with the CB-50LP and the SC-204x and SC-207x boards.
Is it sold with cosmetic wear on the case and no function test?
Yes. The exterior has scuffs, scratches and cosmetic blemishes, and it has had visual inspection only. You get the enclosure with its two CB-68LPR blocks installed, and take on checking every terminal against your own wiring list. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The lid calls it a Configurable Connector Accessory Enclosure, a long name for a box that becomes whatever its panelettes say. Pick the jacks your bench needs and the front panel follows.
