Product Overview
Front-Mount 50-Terminal Screw Block for the SCXI-1180 Feedthrough Panel, Shielded
Condition

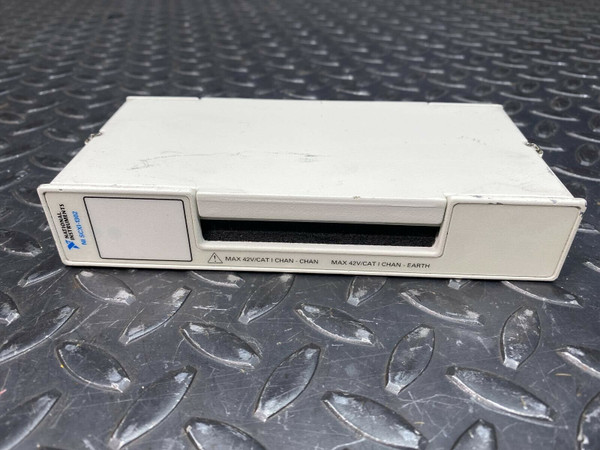

Used, clean and inspected, in good physical condition with normal signs of handling and use. Visual inspection only. Function testing not performed. No additional accessories, manuals or modules are included. Markings legible: NI SCXI-1302, MAX 42V/CAT I CHAN - CHAN, MAX 42V/CAT I CHAN - EARTH, with CE and N114 marks on the label. The photos are representative of this stock.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview
SCXI front-mount terminal blocks turn a module's front connector into screw terminals, so field wires land without solder. The SCXI-1302 is made for the SCXI-1180 feedthrough panel: 50 labeled screw terminals on a shielded board, a 50-pin mating connector, and an earth ground solder lug for the cable shield.
Key Features
- 50 labeled screw terminals, numbered 1 to 50 on the board
- 50-pin mating connector for the front connector of the panel or module
- Shielded board with an earth ground solder lug
- Screw terminals take 26 to 16 AWG wire
- Front panel rating: MAX 42V/CAT I channel to channel and channel to earth
- Hinged cover over the wiring area
- NI part number 777687-02 for the SCXI-1302
Applications
- Wiring field signals to an SCXI-1180 feedthrough panel in an existing SCXI chassis
- Replacing a damaged SCXI-1302 on a test rack without rewiring the whole system
- Keeping a spare block on hand for an older NI data acquisition station
Frequently Asked Questions
What does it connect to?
The SCXI-1180 feedthrough panel. The block mates to the panel's front connector through its 50-pin connector.
How do I tell it from an SCXI-1300 block?
Count and read the terminals. The SCXI-1302 board numbers its 50 screw terminals 1 to 50. An SCXI-1300 labels its terminals by channel, CH0 to CH31, and carries a temperature sensor.
Are manuals or cables included?
Not included.
Can I land a cable shield on it?
Yes. The board carries an earth ground solder lug for the cable shield.
Is this block sold inspected but not function tested?
Yes. It is clean and inspected, and no function test was run. You get the terminal block itself, with no accessories, manuals or modules, and take on proving its terminals and 50-pin connector in your own system. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Fifty numbered screws and one rule printed on the front: 42 V, CAT I. Keep the field wiring inside that line.
