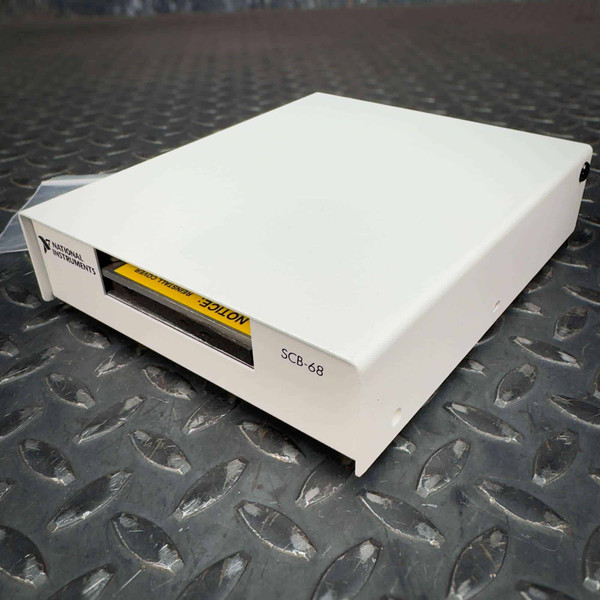

NI SCB-68 Shielded I/O Terminal Block Connector
Condition: Used, clean, and in good condition, with some cosmetic scratches and blemishes expected with this type of used equipment.
The National Instruments SCB-68 is a high-quality, shielded I/O terminal block connector designed to provide secure and noise-free connections for your NI DAQ devices. This versatile wire terminal block is ideal for a wide range of data acquisition applications, ensuring accurate and reliable signal transmission.
Key Features
- Screw Terminals: Easy and secure I/O connections with screw terminals.
- Shielded Design: Reduces noise and improves signal integrity.
- Cold-Junction Compensation (CJC): Onboard sensor for accurate thermocouple temperature measurements.
- General-Purpose Breadboard Areas: Flexible use with custom circuitry.
Specifications
- Connector Type: 68-pin
- Physical Dimensions:
- Width: 18.1 cm (7.1 in.)
- Depth: 15.2 cm (6.0 in.)
- Height: 4.5 cm (1.8 in.)
- Weight: 828 g (1 lb 13 oz)
- Screw Terminal Wiring Specifications:
- Minimum wire gauge: 30 AWG
- Maximum wire gauge: 14 AWG
- Screw terminal torque: 0.5 to 0.6 N-m (4 to 5 in.⋅lb)
- Spacing between screw terminals: 5.00 mm (0.19685 in.)
- Fuse Specifications: 800 mA, 250 VDC, Fast Blow, user-replaceable (Littelfuse P/N 235.800 or equivalent)
Compatibility
The SCB-68 is compatible with a wide range of NI DAQ devices, including:
- NI 60xxE (formerly E Series)
- NI 61xx (formerly S Series)
- NI 62xx (formerly M Series)
- NI 63xx (formerly X Series)
- NI 66xx (formerly Timing I/O [TIO] Series)
- NI 67xx (formerly Analog Output [AO] Series)
- NI SC Express Models (PXIe-43xx)
- NI High-Speed Digital I/O (HSDIO) or Digital Instruments (NI 653x)
- NI Switches Models (NI 25xx)
- NI R Series Models (NI 78xxR)
Additional Information
The SCB-68 does not offer panel, wall, or DIN rail mounting options. For more detailed information, you can refer to the user manuals and advanced function guides provided by National Instruments.
