Product Overview

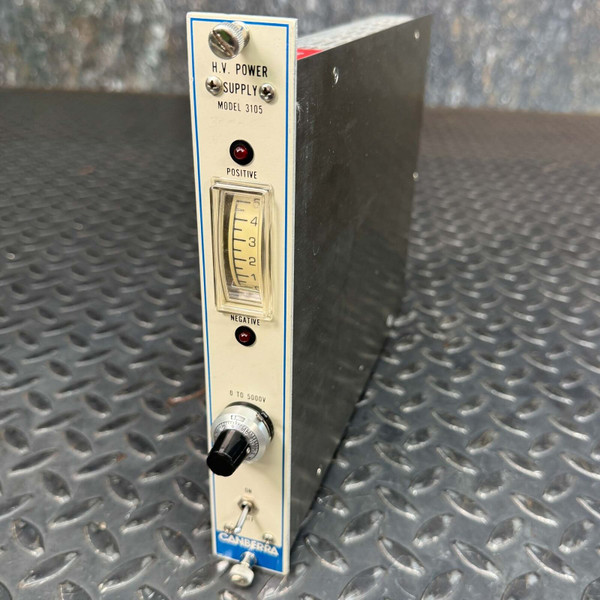

Canberra Model 3105 Detector Bias Supply, 0 to 5000V, Single-Width NIM Module
Condition
Used, in good cosmetic condition on visual inspection, sold as-is because of a faulty adjustment dial. Powered on, the output voltage matched the panel meter and stayed stable across the 0 to 5000V range. The dial readout on the adjustment knob does not track: the outer scale starts at 40 and the inner turns counter stays at 1 as the knob turns. Markings legible: H.V. POWER SUPPLY MODEL 3105, CANBERRA, 0 TO 5000V; rear S/N 8189.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
Canberra's Model 3105 supplies detector bias from a single-width Nuclear Instrumentation Module (NIM) slot. The output is set with the front knob and read on an analog meter, lamps show positive or negative polarity, and the rear INHIBIT input lets a detector's shutdown line cut the high voltage. On this unit the meter is the reference to use, since the dial counter does not follow the knob.
Key Features
- Output dial marked 0 TO 5000V, set on a turns-counting knob
- Analog panel meter scaled 0 to 5 (kV)
- POSITIVE and NEGATIVE polarity lamps
- Front ON / OFF toggle
- Rear HIGH VOLTAGE output connector J1 and INHIBIT BNC input J2
- Single-width module with the standard NIM rear power connector
Applications
- Biasing a germanium, silicon or scintillation detector, setting the voltage by the meter
- Running a photomultiplier tube or proportional counter in a teaching or research NIM bin
- A working spare for a station that already runs 3105 supplies
Frequently Asked Questions
Does the output adjust if the dial is stuck?
Yes. The output held stable across 0 to 5000V and matched the meter. Only the dial readout does not follow the knob, so set the voltage by the meter.
Is a manual included?
Not included.
What am I getting, and what am I taking on?
A used 3105 that makes stable high voltage, with a dial counter that does not track, sold as-is. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The knob forgot how to count, but the supply never forgot how to hold a voltage. Set it by the meter and the detector will never know the difference.
