NIM BIN Canberra 3105 High Voltage Power Supply, 0 to 5000V, Output Checked

Canberra

$162.99
SKU:
000092124011LL24LSMulti
Condition:
Used
Availability:
Usually ships same or next business day.
Bulk Pricing:
Buy in bulk and save
Brand:
Canberra
Adding to cart… The item has been added

Product Overview

Canberra Model 3105 H.V. Power Supply, 0 to 5000V Detector Bias for NIM Bins

Condition

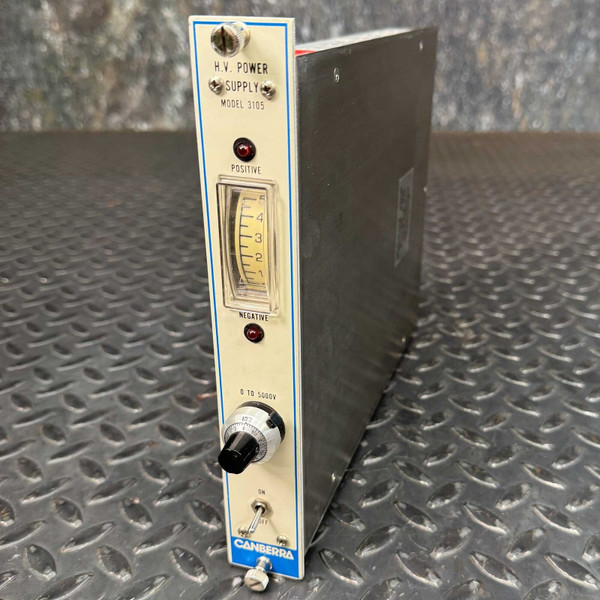

Used, clean and in good condition. Each unit was powered on and its output was checked with a meter, matching the front-panel meter, and held steady across the 0 to 5000V range while following the adjustment dial. Front panel markings legible: H.V. Power Supply, Model 3105, Positive, Negative, 0 to 5000V, On, Canberra; rear: High Voltage J1, Inhibit J2. The unit pictured is representative of stock.

Ships same or next business day from our Idaho warehouse. Selling online since 1999.

Product Overview

Canberra's Model 3105 is a high voltage supply built as a Nuclear Instrumentation Module (NIM), so it slides into a standard NIM bin and draws its power from the bin. It provides the 0 to 5000V DC bias that radiation detectors need, set with a multi-turn dial and read on a front-panel meter scaled 0 to 5 kV. Lamps marked Positive and Negative show the output polarity, and a rear Inhibit input lets other electronics shut the high voltage down.

Key Features

  • Output adjustable 0 to 5000V DC
  • Multi-turn counting dial for the output setting
  • Front-panel analog meter scaled 0 to 5 kV
  • Positive and Negative polarity lamps
  • Front On/Off toggle
  • Rear High Voltage output connector (J1) and BNC Inhibit input (J2)
  • Single-width NIM module with the standard NIM power connector on the rear

Applications

  • Biasing a germanium or silicon detector in a gamma or alpha spectroscopy chain
  • Powering a photomultiplier tube on a scintillation detector
  • Keeping a spare bias supply in the rack so a failed module does not stop a counting lab

Frequently Asked Questions

Does it need a NIM bin to run?

Yes. It takes its operating power from the bin through the rear NIM connector.

Was it powered up?

Yes. The output was checked with a meter, agreed with the front-panel meter, and held steady across the dial's range.

Are cables included?

Not included.

Can a detector preamp shut the high voltage off?

Yes. The rear BNC marked Inhibit (J2) takes that signal, such as the warm-up line from a germanium detector preamp. The output was checked with a meter and held steady across 0 to 5000V. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

A detector without bias is just a quiet crystal. Turn this dial and it starts listening again.
