Canberra 1480 Linear Count-Rate Meter, NIM Module with Recorder Output
Condition

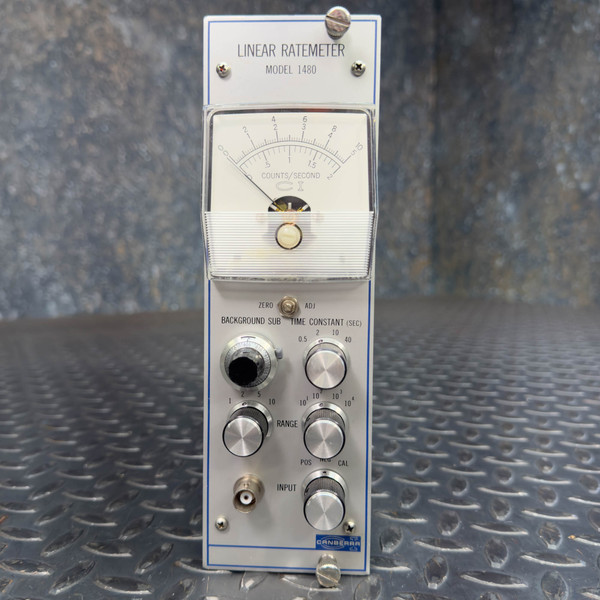

Used, and appears to be in good condition on visual inspection. It was kept as a backup unit. Function testing has not been performed. Markings legible: LINEAR RATEMETER MODEL 1480 and the Canberra badge on the front panel; the meter face reads COUNTS/SECOND.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
Turning a stream of logic pulses into a steady needle reading, the Canberra 1480 shows count rate in counts per second on a large analog meter. It plugs into a Nuclear Instrumentation Module (NIM) bin, smooths the reading with a selectable time constant, subtracts a set background, and sends a matching signal out the rear panel for a chart recorder or data logger.
Key Features
- Double-width NIM module, takes two bin slots
- Analog meter marked COUNTS/SECOND with three scales
- Range selectors: 1, 2, 5, 10 multiplier and 10 to 10^4 decade switch
- Time constant selector 0.5, 2, 10 and 40 seconds
- Background subtract on a turns-counting dial, with zero adjust
- Input switch marked POS, NEG and CAL, front BNC input
- Rear panel: RECORDER OUT BNC, RECORDER RANGE adjustment, INPUT BNC
- Standard NIM rear power connector
Applications
- Watching count rate live while setting up a detector, discriminator or source position
- Logging rate over time to a chart recorder or data logger from the recorder output
- Demonstrating counting statistics in a teaching lab, where the needle shows what the time constant does
Frequently Asked Questions
What signal does it count?
Pulses into the front or rear INPUT BNC, with the input switch set for positive or negative pulses. The CAL position is on the same switch.
Can it drive a chart recorder?
Yes. The rear panel has a RECORDER OUT BNC and a RECORDER RANGE adjustment.
Is a manual included?
Not included.
What am I getting, and what am I taking on?
A used 1480 that was kept as a backup and has not been function tested here. It is clean and complete as photographed. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A scaler gives you a number when you ask for one. A ratemeter gives you a needle that moves while you work, and the 40 second time constant is there for the days you want it to calm down.
