Product Overview
Square D 9007 C62K Type 6P Mechanical Limit Switch - A600 R300 Spring Rod Actuator, Made in USA
Condition

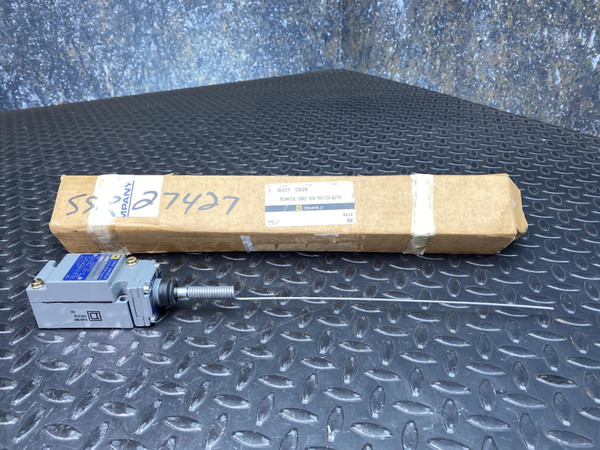

Single unit available. Unused, New Old Stock. The switch body shows no visible wear or damage. Original kraft cardboard box is intact with storage wear on the exterior. No manuals or mounting accessories are included. Source unknown.
Carefully packed and shipped same business day from our Idaho warehouse. Online since 1999. Honest equipment and straightforward service.
No hassle resolution if there is an issue. Serving customers since 1999.
Product Overview
Square D 9007 C62K, Type 6P - a Class 9007 Series A electromechanical limit switch rated A600/R300 with a spring rod actuator. Built in the USA, this switch detects object presence or position by physical contact and sends an electrical signal into the control circuit. The A600 designation indicates a general-purpose AC voltage rating; R300 indicates a resistive DC load rating. Form D21D. Date code 321D. The spring rod actuator is intact and full length with no visible bends.
Key Features
- Model: 9007 C62K, Type 6P
- Class: 9007 Series A
- Ratings: A600, R300, EQ 572A (confirmed from label)
- Actuator: Spring rod - intact, full length, no bends
- Form: D21D
- Date code: 321D
- Made in USA
- Brass terminal screw present and visible
- Contact configuration: Not confirmed - verify against datasheet before use
- Enclosure rating: Not confirmed - verify against datasheet before use
Applications
- Industrial machine position detection and signaling
- Safety interlock circuits in manufacturing and process control
- Conveyor and material handling control systems
- Repair or direct replacement in legacy Square D Class 9007 installations
- End-of-travel detection on actuators, doors, and movable machine components
Frequently Asked Questions
What are the electrical ratings for this switch?
The blue label on this unit confirms A600, R300, and EQ 572A. A600 is a general-purpose AC rating; R300 is a resistive DC load rating. Exact voltage and current maximums should be verified against the Square D Class 9007 datasheet before installation.
What actuator type does this switch have?
Spring rod actuator, confirmed from photos. The rod is intact and full length with no visible bends or damage.
Is this compatible with my existing Square D Class 9007 installation?
This is a Class 9007 Series A unit. Mechanical and electrical compatibility depends on your specific mounting configuration, circuit voltage, and contact requirements. Verify Form D21D and Type 6P against your system's wiring diagram before ordering.
Are manuals or mounting hardware included?
Not included.
Is the original packaging included?
Yes. The original kraft cardboard box is included. The box shows exterior storage wear; the switch itself is in unused condition.
Square D built the 9007 series for the kind of industrial environments that eat lesser hardware - and this one never made it off the shelf. A spring rod intact, terminals clean, box still around it. Someone kept it right. Now it is ready for the application that actually needs it.
