Product Overview
Analog Power Factor Panel Meter Reading .5 Lag Through 1.0 to .5 Lead
Condition

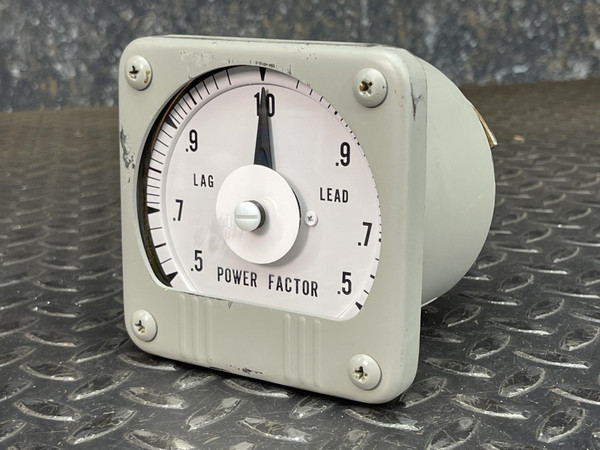

Used, in good condition with scuffs and scratches from normal use and storage, and tested for continuity only. Sold as one meter, with no manuals or accessories. Markings legible: P/N 1014 3 TYPE, DB 14 POWER FACTOR, ES 500 0 500 UA, POWER FACTOR, 27197 and 3E, with POWER FACTOR, LAG and LEAD on the dial.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview

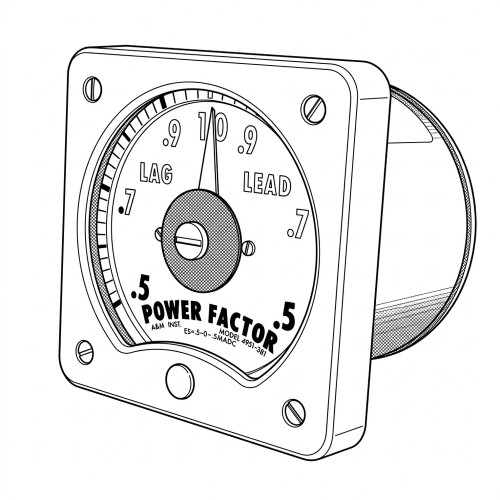

A power factor indicator for a panel, with unity at the top of the dial and lagging and leading halves falling away to .5 on either side. One look tells an operator which way the load is leaning and by how much.
Key Features
- Scale: .5, .7, .9, 1.0, .9, .7, .5, LAG on the left and LEAD on the right
- Label code: ES 500 0 500 UA
- Square gray bezel with a screw at each corner
- Four threaded mounting studs behind the bezel corners
- Two threaded studs on the rear block
- Slotted screw at the center of the dial
Applications
- Replacing a failed power factor meter in an existing switchgear panel cutout
- Filling an empty meter hole on a restored control panel
- Steam punk builds and industrial display pieces that want a real gauge face
Frequently Asked Questions
Does the dial cover both leading and lagging power factor?
Yes. It runs from .5 LAG on the left through 1.0 at the top to .5 LEAD on the right.
Does it come with mounting nuts or a manual?
No. There are no manuals or accessories with this meter.
Has it been tested beyond continuity?
No. It has been tested for continuity only, and it shows scuffs and scratches from normal use and storage; what you get is the meter as shown, with no accessories. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
ES 500 0 500 UA, then a gray drum of whatever makes the needle swing. The dial keeps it simple: lag on the left, lead on the right.
