Product Overview
Agilent Technologies G1310A Solvent Delivery Module with 1:100 Splitter
Condition

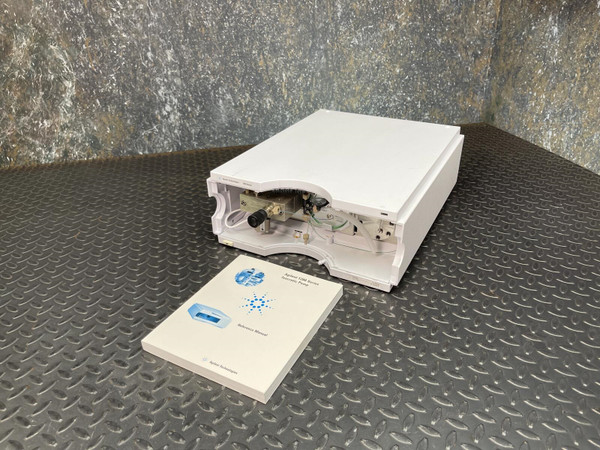

Used. Evaluation: Visual inspection and power-on check only; fluidic pumping under analytical pressure not tested. The internal drive and cooling fans power on and run smoothly. The front decorative cover door is missing, exposing the internal fluid components. Markings legible: Product No. G1310A, Serial No. DE62956016. Includes physical Agilent 1200 Series Isocratic Pump Reference Manual, installed G1369A LAN card, and installed G1607-60000 1:100 flow splitter.
Same or next business day shipping from our Idaho warehouse. Reliable parts since 1999. Honest pricing, no nonsense.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview
Agilent Technologies G1310A is an isocratic solvent delivery module engineered for high-performance liquid chromatography. Operating on a dual-piston in series mechanism with a servo-controlled variable stroke drive, it provides stable mobile phase delivery across flow rates up to 10.0 mL/min at pressures reaching 400 bar. This unit includes a manual purge valve, an internal G1607-60000 1:100 splitter assembly, and a rear-installed G1369A LAN communication card for network control across modular stacks.
Key Features
- Dual-piston in series pumping mechanism with servo-controlled variable stroke drive
- Flow rate range from 0.001 to 10.0 mL/min in 0.001 mL/min increments
- Operating pressure rating up to 400 bar (40 MPa / 5880 psi)
- Installed G1369A LAN interface card for Ethernet network connectivity
- Rear interface options including dual CAN ports, RS-232, analog out, and remote I/O
- Equipped with an internal G1607-60000 1:100 fluidic splitter bracket and capillary loop
- Front-accessible purge valve with knurled control knob
- Universal electrical input: 100-240 VAC, 50/60 Hz, 180 VA
- Includes original physical Agilent 1200 Series Isocratic Pump Reference Manual
Applications
- Routine isocratic HPLC separations in industrial QA/QC, testing, or academic laboratories
- Dedicated column washing, flushing, or regeneration pumping in multi-detector stacks
- Integration into custom benchtop fluid delivery systems or automated chemical metering setups
Frequently Asked Questions
Is the front cover door included with this unit?
Not included.
Which communication options are installed on the rear panel?
A G1369A LAN interface card is installed in the rear expansion slot, alongside factory CAN ports, RS-232, analog BNC, and remote connections.
What is the testing status and condition of this pump?
This module powers on cleanly with smooth, quiet drive and fan operation. Fluid delivery, active inlet valve cycling, and high-pressure leak testing have not been performed. It is sold in used condition with the missing front panel and power-up verification only.
A classic Agilent workhorse does not need cosmetic plastics to hold steady pressure at four hundred bar. Plumb your lines, set your flow rate, and put this proven dual-piston drive right back to work.
