Product Overview
Weatherhead 470 Series Straight Female JIC 37 Degree Swivel Crimp End for 1-1/4 Inch H470 Hose
Condition
Unused and never crimped onto a hose, with no previous installation or wear. Eaton bag label legible: EPART 47020E-620, CPART 47020E620, QTY 1, made in Mexico, UPC 725975066584.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview

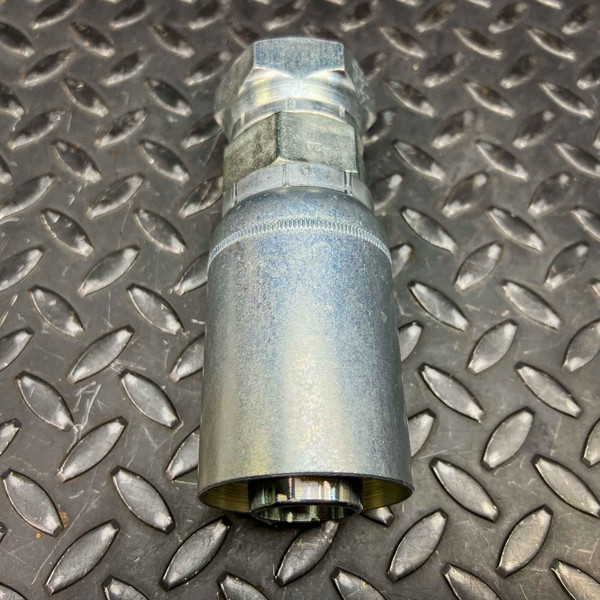

Eaton's 47020E-620 is a straight Coll-O-Crimp hose end from Weatherhead's 470 series, built for 1-1/4 inch ID H470 hose. The stem goes into the hose and the ferrule is crimped down over it with Coll-O-Crimp tooling, and the female JIC 37 degree swivel nut lets the finished assembly thread onto a male JIC fitting without twisting the hose.
Key Features
- Coll-O-Crimp permanent crimp hose end, Weatherhead 470 E series
- For 1-1/4 inch ID H470 hose; 2500 psi working pressure
- Straight body
- Female JIC 37 degree flare swivel nut, 1-5/8-12 thread, -20 size
- Hex sizes 2 inch and 1.75 inch; 5.72 inch overall length
- Hose cut-off factor 2.57 inch
- Carbon steel with a zinc clear trivalent chromate finish
- Bag label UPC 725975066584
Applications
- Building a 1-1/4 inch H470 hose assembly that threads onto a male JIC adapter, such as a split flange to JIC elbow
- Replacing a failed straight hose end on a hydraulic line on mining, construction or farm equipment
- Re-making an assembly in the field with the same Weatherhead crimp system already on the machine
Frequently Asked Questions
Is this straight or an elbow?
Straight. The swivel nut and the ferrule sit on the same axis.
What hose does it fit?
1-1/4 inch ID H470 hydraulic hose in the -20 size.
Do I need special tooling?
Yes. It is crimped onto the hose with a Coll-O-Crimp crimper and the die set for the hose and fitting size.
What does it thread onto?
A 1-1/4 inch male JIC 37 degree fitting with a 1-5/8-12 thread. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The swivel nut is the courtesy here: it lets the hose sit where it wants while the threads do the turning. Match your hose to the 470 series, and the assembly goes together without a twist.
