90 Degree SAE Code 62 Flange Head to Male JIC 37 Degree Adapter, 1-1/4 Inch
Condition
Unused new old stock, never installed. Its packaging was opened once, to inspect and photograph the fitting.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

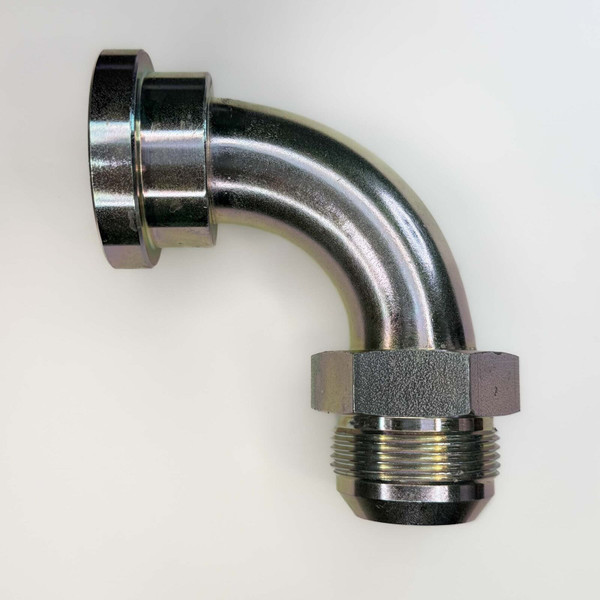

Eaton's 69020 turns a 1-1/4 inch SAE Code 62 four-bolt flange port into a male JIC 37 degree flare connection, with a 90 degree bend between the two. Weatherhead built this pattern so a standard female JIC swivel hose end can come straight off a pump or valve flange instead of needing a flanged hose fitting.
Key Features
- 90 degree elbow body
- Flange end: SAE Code 62 flange head, 1-1/4 inch
- Threaded end: male JIC 37 degree flare, 1-5/8-12 thread for 1-1/4 inch tube
- Carbon steel, zinc plated with yellow dichromate
- Retained on the port by a Code 62 split flange kit (sold separately)
Applications
- Connecting a female JIC swivel hose assembly to a pump or valve with a 1-1/4 inch Code 62 port
- Turning a hose run 90 degrees right at the port where there is no room for a long bend
- Replacing a worn or damaged 69020 on an existing hydraulic unit
Frequently Asked Questions
Does it come with the flange halves and bolts?
Not included. The adapter is held to the port by a separate Code 62 split flange kit and sealed with an O-ring.
Will it fit a Code 61 port?
No. A 1-1/4 inch Code 62 flange head is 2-1/8 inch across, against 2 inch for Code 61, and a Code 62 port spaces its bolts 2-5/8 inch across the long side of the pattern instead of 2-5/16 inch. Measure the port before ordering.
What hose end mates with the threaded side?
A 1-1/4 inch female JIC 37 degree swivel, which uses the same 1-5/8-12 thread and flare seat. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A flange port and a JIC hose end speak different dialects, and this elbow translates in 90 degrees. Measure the port, check the code, and the hose can come straight off the pump.
