Eaton Weatherhead 64520 Split Flange 45° Elbow, 1-1/4" Code 62 x -20 JIC

Eaton

$28.99
SKU:
000110224010PP24StoreMulti
Condition:
New
Brand:
Eaton
Type:
Hydraulic
Adding to cart… The item has been added

Product Overview

Eaton Weatherhead 64520 Code 62 Flange Head to -20 Male JIC, 45 Degree

Condition

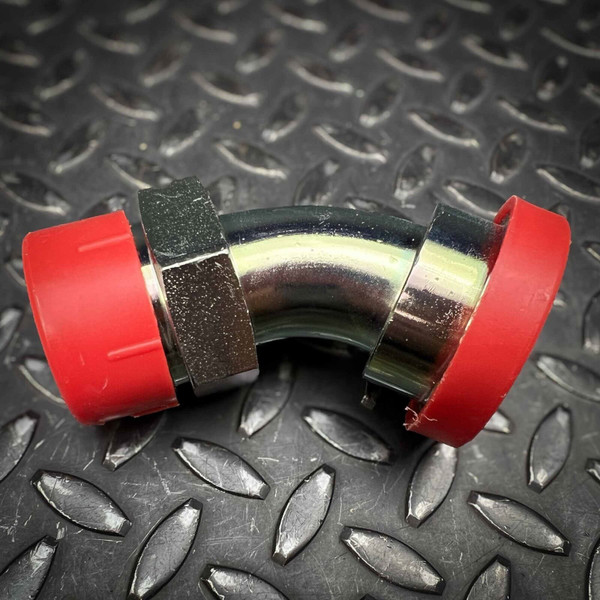

Never installed, unused new old stock. Eaton label markings legible: EPART 64520, CPART 64520, made in United Kingdom. The unit pictured is representative of stock.

Selling online since 1999. It ships from our Idaho warehouse the same or next business day.

Product Overview

Weatherhead's 64520 is the 1-1/4 inch member of its Code 62 45 degree elbow adapters. The flange head clamps to a 1-1/4 inch Code 62 port with a split flange kit and O-ring, and the other end is a -20 JIC 37 degree male flare that takes a standard female swivel hose end. Big pumps and valves with flanged outlets get a 45 degree turn and an ordinary hose connection in one piece.

Key Features

  • Flange end: Code 62 flange head, 1-1/4 inch size
  • Tube end: -20 (1-1/4 inch) JIC 37 degree male flare, 1-5/8-12 thread
  • Hydraulic split flange adapter, 45 degree bent-tube body
  • Wrench flats (hex) behind the JIC threads

Applications

  • Turning a 1-1/4 inch pressure line 45 degrees off a Code 62 pump outlet
  • Replacing a worn 45 degree flange adapter on loaders, presses or power units
  • Fitting stock -20 JIC hose assemblies to a flanged valve block

Frequently Asked Questions

Will it bolt to a 1-1/4 inch Code 61 port?

No. A 1-1/4 inch Code 62 flange head is thicker and uses a wider bolt pattern than a 1-1/4 inch Code 61 head, so the port and the clamp halves must both be Code 62.

Do the clamp halves, bolts and O-ring come with it?

Not included.

What hose end mates with the JIC side?

A -20 female JIC 37 degree swivel, the standard end on 1-1/4 inch hose assemblies. No special flanged hose end is needed. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.

At 1-1/4 inch, a hose does not bend politely, so the bend lives in the steel instead. Put the angle here and let the hose run straight.
