Eaton Weatherhead 60020 Straight Code 62 Flange Head to -20 Male JIC
Condition

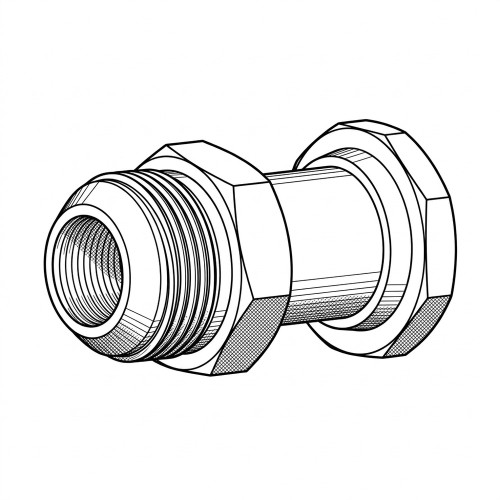

Unused new old stock, never installed. Eaton label markings legible: EPART 60020, CPART 60020, made in New Zealand. The unit pictured is representative of stock.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview
The 60020 is the 1-1/4 inch straight adapter in Weatherhead's Code 62 line. It clamps to a 1-1/4 inch Code 62 port with a split flange kit and O-ring and presents a -20 JIC 37 degree male flare, the thread a standard 1-1/4 inch hose assembly screws onto. It is how a large flanged pump outlet gets an ordinary hose.
Key Features
- Flange end: Code 62 flange head, 1-1/4 inch size
- Tube end: -20 JIC 37 degree male flare, 1-5/8-12 thread
- Carbon steel
- Length 3.97 inches (100.8 mm)
- Weight 1.6 lb
- Straight body
- Hex wrench flats behind the JIC threads
Applications
- Connecting -20 hose assemblies to a 1-1/4 inch Code 62 pump outlet
- Replacing a straight flange adapter during a pump swap
- Adapting a flanged valve manifold to JIC hose
Frequently Asked Questions
Will it bolt to a Code 61 port of the same size?
No. A 1-1/4 inch Code 62 flange head is thicker and uses a wider bolt pattern than a 1-1/4 inch Code 61 head, so the port and the clamp halves must both be Code 62.
Are the clamp halves, bolts and O-ring included?
Not included.
What does the JIC end mate with?
A -20 female JIC 37 degree swivel, the standard end on 1-1/4 inch hydraulic hose. The flange end needs a 1-1/4 inch Code 62 clamp kit and O-ring. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Large flanged ports exist because threads that big get unhappy at high pressure. This adapter keeps the flange where the pressure lives and hands the hose a thread it understands, so choose the hose length and go.
