Eaton Weatherhead 60016 Straight Code 62 Flange Head to -16 Male JIC
Condition
Unused new old stock, never installed. Eaton label markings legible: EPART 60016, CPART 60016, made in New Zealand.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
We are here for our customers, with a no-hassle satisfaction guarantee.
Product Overview

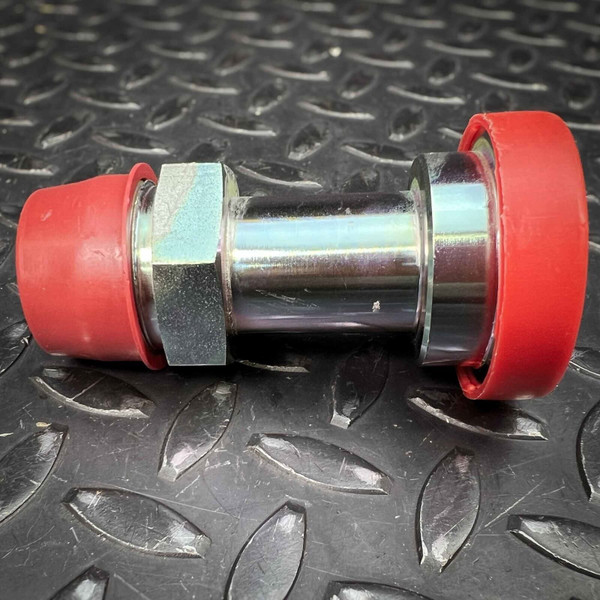

Weatherhead's 60016 is a straight adapter: a 1 inch Code 62 flange head on one end, a -16 JIC 37 degree male flare on the other. Clamped to a Code 62 port with a split flange kit and O-ring, it gives the port a JIC thread, so a standard -16 hose assembly with a female swivel end connects without a custom flanged hose.
Key Features
- Flange end: Code 62 flange head, 1 inch size
- Tube end: -16 JIC 37 degree male flare, 1-5/16-12 thread
- Straight body
- Hex wrench flats behind the JIC threads
Applications
- Converting a 1 inch Code 62 pump or motor port to JIC
- Replacing a damaged straight flange adapter on a power unit
- Using off-the-shelf -16 hose assemblies on flanged equipment
Frequently Asked Questions
Will it bolt to a Code 61 port of the same size?
No. A 1 inch Code 62 flange head is thicker and uses a wider bolt pattern than a 1 inch Code 61 head, so the port and the clamp halves must both be Code 62.
Are the clamp halves, bolts and O-ring included?
Not included.
Is this the 1 inch or the 3/4 inch size?
The 1 inch size: the Eaton label reads 60016, and the -16 JIC end has the 1-5/16-12 thread. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A Code 62 port speaks flange and most hoses speak JIC. This short steel interpreter handles the conversation, so pick the hose you already have and bolt it on.
