Eaton Weatherhead 64516 Code 62 Flange Head to -16 Male JIC, 45 Degree
Condition

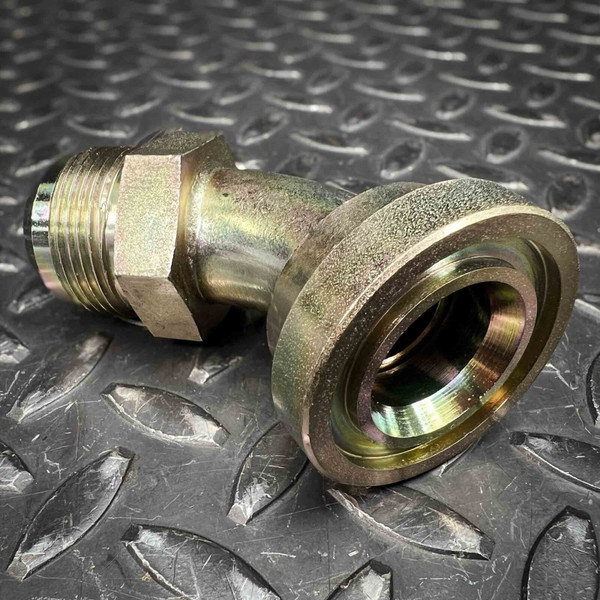

Unused new old stock with no prior installation. Eaton label markings legible: EPART 64516, CPART 64516, made in New Zealand. The unit pictured is representative of stock.
Ready to ship from our Idaho warehouse the same or next business day. Selling online since 1999.
Product Overview
The 64516 from Eaton's Weatherhead line takes a 1 inch Code 62 split flange port and bends the line 45 degrees to a -16 JIC 37 degree male flare. One fitting replaces a straight flange adapter plus a separate JIC elbow, which saves a joint and some length where the space around a pump is tight.
Key Features
- Flange end: Code 62 flange head, 1 inch size
- Tube end: -16 (1 inch) JIC 37 degree male flare, 1-5/16-12 thread
- 45 degree bent-tube body
- Hex flats for a wrench sit behind the JIC threads
Applications
- Running a 1 inch pressure hose off a Code 62 pump outlet at 45 degrees
- Replacing a damaged flange elbow on construction or ag equipment
- Cutting one joint out of a straight adapter and elbow stack-up
Frequently Asked Questions
Does it fit a 1 inch Code 61 port?
No. A 1 inch Code 62 flange head is thicker and uses a wider bolt pattern than a 1 inch Code 61 head, so the port and the clamp halves must both be Code 62.
Is a split flange kit included?
Not included.
Why an elbow adapter instead of a straight adapter and a JIC elbow?
One piece means one less sealing joint and a shorter reach from the port. The -16 JIC end still takes a standard female swivel hose end. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
Every extra joint in a hydraulic line is one more place to look when the floor gets slick. This one turns the corner and keeps the count down, so bolt it on and move to the next port.
