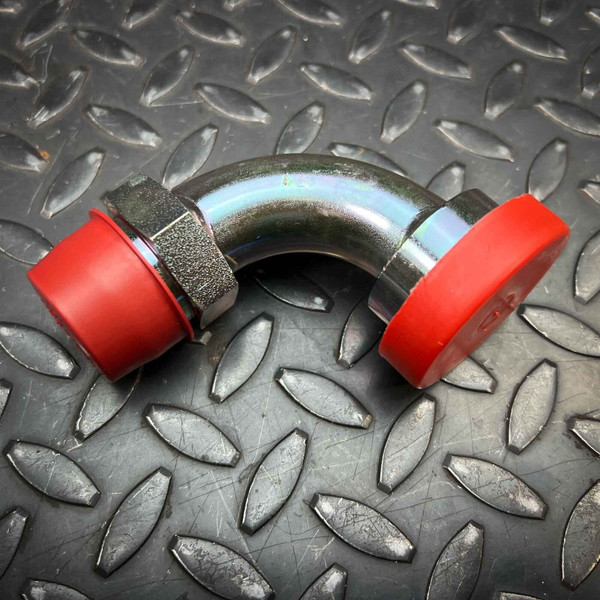

Eaton 69016, 1 Inch Code 62 Flange Head to Male JIC 37 Degree, 90 Degree Elbow
Condition
Unused new old stock, never installed, with red protective caps on both ends. Eaton bag label legible: EPART 69016, CPART 69016, made in New Zealand.
Ships same or next business day from our Idaho warehouse. Selling online since 1999.
A no-hassle satisfaction guarantee on every order.
Product Overview
Eaton's 69016 joins a 1 inch SAE Code 62 four-bolt flange port to a male JIC 37 degree flare connection through a 90 degree bend. It lets a standard 1 inch female JIC swivel hose end come off a pump or valve at a right angle, with the flange end held to the port by a Code 62 split flange kit.
Key Features
- 90 degree elbow body
- Flange end: SAE Code 62 flange head, 1 inch (-16)
- Threaded end: male JIC 37 degree flare, 1-5/16-12 thread for 1 inch tube
- Carbon steel, zinc plated with yellow dichromate
- Red protective caps on both ends
Applications
- Connecting a 1 inch female JIC swivel hose assembly to a Code 62 pump or valve port
- Turning a pressure line 90 degrees at the port where space is tight
- Replacing a damaged 69016 on an existing hydraulic power unit or machine
Frequently Asked Questions
Are the split flange halves and bolts included?
Not included. A 1 inch Code 62 split flange kit and O-ring hold the adapter to the port.
Will it fit a 1 inch Code 61 port?
No. A 1 inch Code 62 flange head is 1-7/8 inch across, against 1-3/4 inch for Code 61, and a Code 62 port spaces its bolts 2-1/4 inch across the long side of the pattern instead of 2-1/16 inch.
What mates with the threaded end?
A 1 inch female JIC 37 degree swivel hose end or tube nut, 1-5/16-12 thread. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
The bag says New Zealand, the flange says Code 62 and the thread says JIC, and the elbow gets them all to agree at a right angle. Check the port code and it is ready for the line.
