Tennelec TC 244 Pulse Shaping Amplifier with Pileup Rejector for NIM Spectroscopy
Condition
Used, with a clean exterior and no noticeable damage, and appears in excellent condition on visual inspection. It was working when it went into storage. Function testing has not been performed since. Front panel markings legible: TENNELEC, TC 244 AMPLIFIER. Rear panel marked MADE IN USA. A worn marking sits on the upper left of the front panel beside the Tennelec name.
Ships from our Idaho warehouse the same or next business day. We've been selling online since 1999.
Product Overview

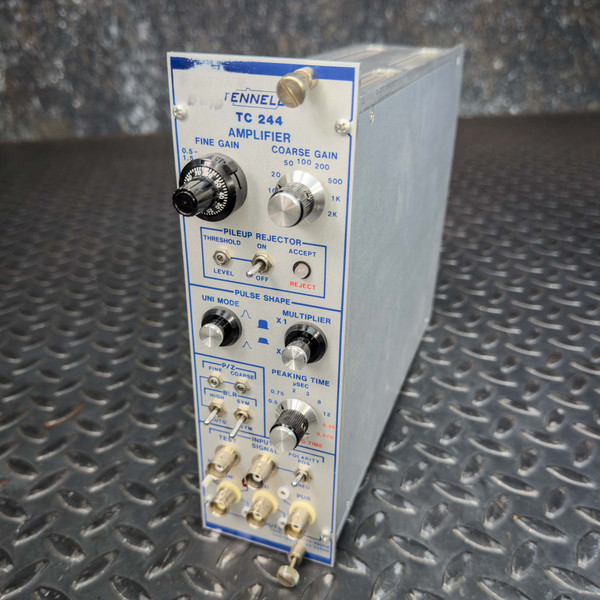

Made for the Nuclear Instrumentation Module (NIM) bin, the Tennelec TC 244 spectroscopy amplifier takes the tail pulse from a detector preamplifier, shapes it and sets the gain so a multichannel analyzer sees clean, well-separated peaks. The front panel carries the shaping and pileup controls; the rear panel carries the signal inputs, the unipolar, bipolar and pileup outputs, the ADC handshake lines and a preamp power connector.
Key Features
- Double-width NIM module, takes two bin slots
- Fine gain 0.5 to 1.5 on a turns-counting dial, coarse gain 5 to 2K
- Peaking time selector marked 0.25 to 12 microseconds
- Pulse shape controls: uni mode selector and X1 / X2 multiplier
- Pileup rejector with threshold level, on / off switch and accept / reject indicator
- Pole-zero fine and coarse trims, baseline restorer high / auto and symmetry switches
- Front inputs: test and signal, with positive / negative polarity switch
- Rear BNC jacks: signal, test in, uni out, delay out, bi out, PUR out, inhibit, ADC busy in, ICR out, DT out
- Single-ended / differential input switch and a D-connector marked PREAMP on the rear panel
Applications
- Shaping preamp pulses from a germanium or scintillation detector ahead of an ADC or multichannel analyzer
- Rejecting piled-up pulses at higher count rates so the spectrum keeps its peak shape
- Replacing a failed shaping amplifier in an existing NIM spectroscopy chain
Frequently Asked Questions
Does it fit a standard NIM bin?
Yes. It plugs into a standard NIM bin through the rear power connector. The panel is wider than a single-width module, so it takes more than one bin slot.
Can it power my detector preamp?
Yes. The rear panel carries a D-connector marked PREAMP, the outlet NIM spectroscopy amplifiers use to supply preamplifier power.
Is a manual included?
Not included.
What am I getting, and what am I taking on?
A used TC 244 that was working when it went into storage with no function testing since. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A detector speaks in tail pulses that pile on top of each other when things get busy. This module sorts them into clean peaks and quietly throws out the ones that arrived together, which leaves you to slide it into the bin and start counting.
