EG&G Ortec 459 Detector Bias Supply, 0 to 5 kV, Single-Width NIM Module
Condition

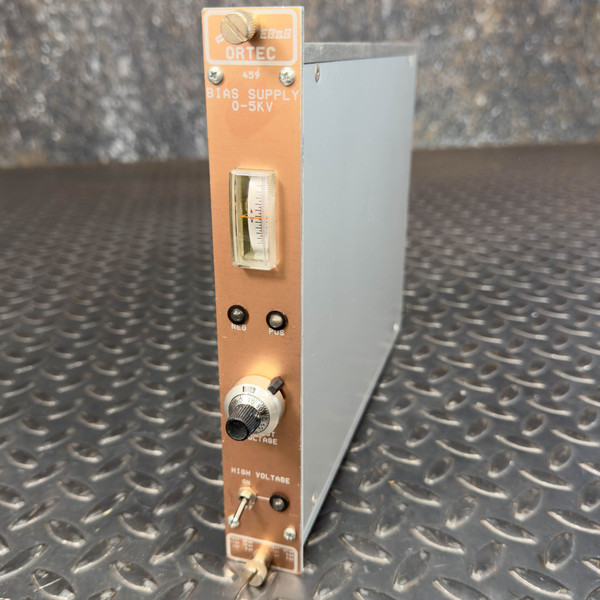

Used, clean, in good cosmetic condition. Tested: the panel meter readings matched the adjustment dial settings, and the output was linear through the range up to 5000V. It is currently set for negative voltage operation. Front panel markings legible: EG&G ORTEC 459 BIAS SUPPLY 0-5KV.
Selling online since 1999. This one ships from our Idaho warehouse the same or next business day.
Product Overview

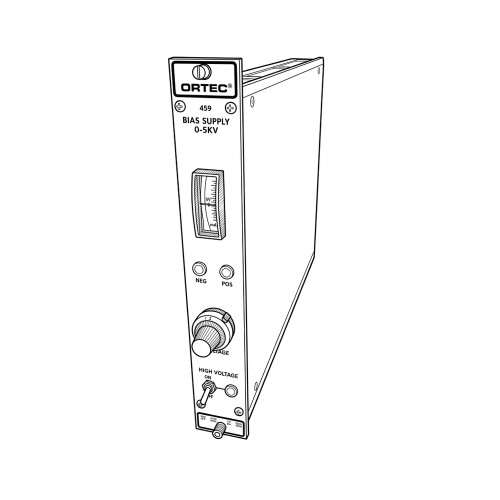

Detectors need a steady, adjustable bias, and the Ortec 459 supplies it from a single-width Nuclear Instrumentation Module (NIM) slot. Output is set on a turns-counting dial and read on the front meter, NEG and POS lamps show which polarity the unit is set for, and a rear BNC lets a detector's shutdown line cut the high voltage.
Key Features
- Front panel marked BIAS SUPPLY 0-5KV
- Rear outputs marked 0-5KV (Zo = 2M ohm) and 0-500V (Zo = 100K ohm)
- Rear REMOTE SHUTDOWN BNC input
- Front panel meter, NEG and POS polarity lamps, turns-counting voltage dial
- HIGH VOLTAGE on / off toggle with indicator lamp
- Set for negative output
- Standard NIM rear power connector, draws power from the bin
Applications
- Biasing a germanium detector, with its preamp's shutdown line wired to the remote shutdown input
- Supplying a proportional counter, surface barrier detector or photomultiplier tube in a NIM setup
- Keeping a known spare ready for a working spectroscopy station
Frequently Asked Questions
Is it set for positive or negative output?
Negative, as it sits now. The front panel lamps show which polarity is selected.
Did the output hold its range?
Yes. The output was linear up to 5000V, and the meter matched the dial settings.
Is a manual included?
Not included.
Which rear output should I use?
The 0-5KV jack, marked Zo = 2M ohm, carries the full range for germanium detectors and photomultiplier tubes. The 0-500V jack, marked Zo = 100K ohm, serves detectors that need lower bias, such as silicon surface barrier detectors. This unit was run to 5000V with the meter and dial in agreement. Flat-rate shipping in the lower 48, and orders over the free-shipping line ship free.
A germanium detector that warms up with bias still applied can be damaged, which is why its preamp sends a warning. The rear REMOTE SHUTDOWN jack on this supply is where that warning goes, so wire it in before you turn the dial.
